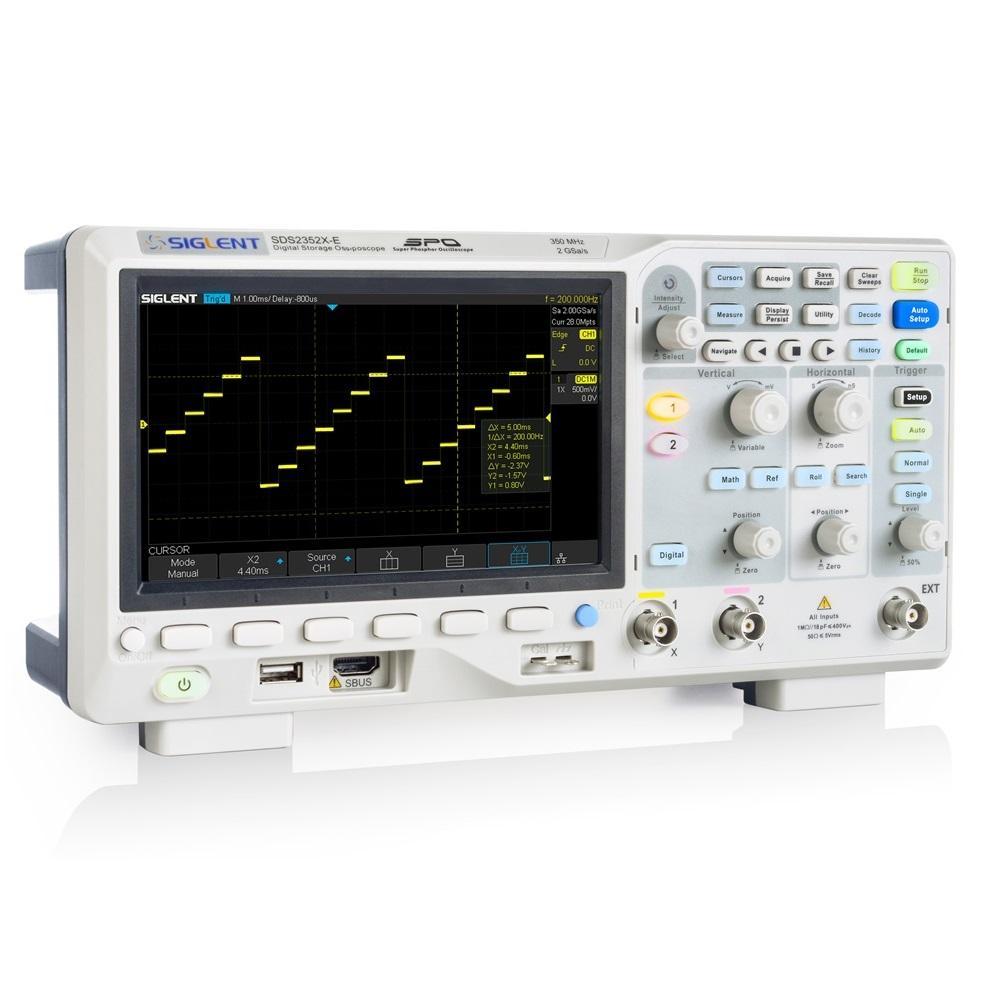

Siglent SDS2352X-E : 350MHz SPO Digital Oscilloscope

Price : On Request

SIGLENT’s new SDS2000X-E Series Super Phosphor Oscilloscopes are available in two bandwidths; 200 MHz and 350 MHz. They each have a maximum sampling rate of 2 GSa/s and a standard record length of 28 Mpts. The most commonly used functions can be accessed with its user-friendly one-button design.

The SDS2000X-E series employs a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode). It also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent?s newest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Also included is the deep memory FFT. This math function uses upto 1 M samples for the FFT calculation, providing the SDS2000X-E with very high frequency resolution. The hardware co-processor executes true fast measurement and math to all of 28M sample points so that there is minimal distortion on analysis. It also supports searching and navigating, on-screen Bode plot, 16 channel digital /MSO (optional), an external USB powered 25 MHz AWG function generator module (option), a USB WIFI adapter for wireless control and monitoring (option), and an embedded application that allows remote control via web browser. The features and high-performance of the SDS2000X-E oscilloscopes cannot be matched else anywhere at this price.

Key Features
200MHz, 350MHz bandwidth models
Real-time sampling rate up to 2 GSa/s (1 GSa/s per channel, if bothchannels active)
The newest generation of SPO technology
Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
Serial bus triggering and decoding (standard), supports protocols IIC, SPI,UART, CAN, LIN
Video trigger, supports HDTV
Low background noise with voltage scales from 500?V/div to 10V/div
10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture qualifying events
History waveform record (history) function (maximum recorded waveform length is 80,000 frames)
Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
1 Mpt FFT
Math and measurement functions use all sampled data points in memory (up to 28 Mpts)
Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
Preset key can be customized for user settings or factory “defaults”
Security Erase mode
High Speed hardware based Pass/ Fail function
16 Digital channels (MSO) (option)
Bode plot
Search and navigate
USB AWG module(option)
USB WIFI adapter(option)
Web Browser based control
Large 7 inch TFT -LCD display with 800 * 480 resolution
Multiple interface types: USB Host, USB Device (USB -TMC), LAN, Pass / Fail, Trigger Out
Supports SCPI remote control commands
VXI-11+SCPI, Telnet (port 5024) +SCPI and Socket (port 5025) +SCPI programming over LAN
Supports web control and virtual instrument control panel for both PC and mobile terminals
Supports Multi-language display and embedded online help

Additional information

Weight 5000 kg
