Key Features
Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
Innovative TrueArb technology, based on a point-by-point architecture, supports any 2 pts ~ 16 kpts Arb waveform with a sampling rate in range of 1 ?Sa/s ~ 30 MSa/s
Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
Sweep and Burst functions
Harmonics Generator function
Waveform Combining function
High precision Frequency Counter
Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
Optional interface: GPIB
4.3 TFT-LCD display

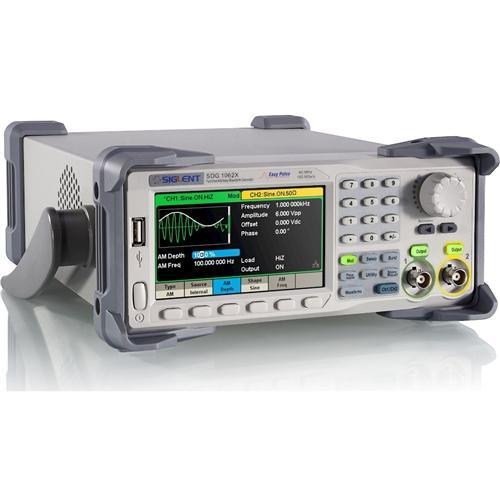

Siglent SDG1062X: 60MHz Function/Arbitrary Waveform Generator
Price : On Request
SIGLENT’s SDG1000X is a series of dual-channel function/arbitrary waveform generators with specifications that include up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, the SDG1000X can provide users with a variety of high fidelity / low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.
Additional information
| Weight | 4000 kg |
|---|
