LV Switchracks & Power Distribution Racks – Hazardous/Outdoor

LV Switchracks & Power Distribution Racks – Hazardous/Outdoor – engineered to your project specification and supplied across Saudi Arabia for utilities, industrial plants, commercial buildings and infrastructure projects. Pricing depends on rating, configuration and quantity; contact us with your single-line diagram or specification for a quotation.

Technical Data & Available Versions

Special Design for Classified Areas and Corrosive Environments.

• Suitable for Outdoor Application

• Special Design for Classified Areas and Corrosive Environments.

• Switchracks are manufactured to NEMA, UL, CSA, & FM standards and NEC requirements. All enclosures are tested and certified by  third party laboratories.

• Maximum rating 600 V AC, 5060 Hz, 1200 Amps.

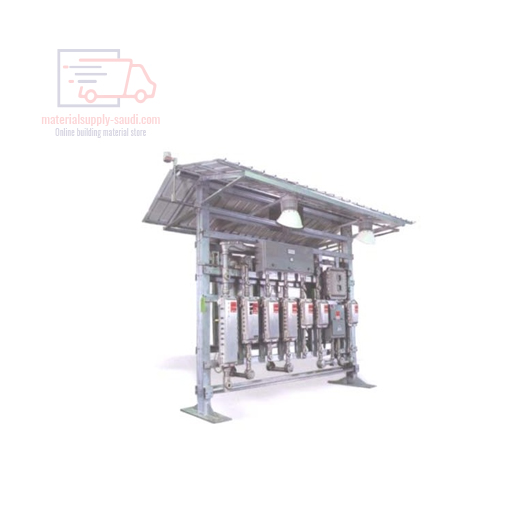

Switchrack

Switchracks are manufactured to NEMA, UL, CSA, and FM standards and NEC requirements and are suitable for outdoor applications in the desert environment corrosive and hazardous locations. All enclosures are labeled with NEMA 44X compliance labels approved by independent laboratories.

n

Ratings

Switchrack has a rating nameplate attached to the left side of the post. The nameplate shows the general order number under which the rack was built and its electrical ratings, in terms of incoming line voltage, current and frequency. In addition, this nameplate shows a passive circuit (withstand) rating, buyer P.O. no., line item nos., or serial no.

n

Maximum Voltage: 600V Frequency: 50 or 60 Hz Continuous Current: 1200 Amps

n

Qualified Personnel

Individuals who install, operate or maintain Switchrack must be trained and authorized to operate the equipment associated with the installation and maintenance of a Switchrack, as well as the operation of the equipment that receive its power in the Switchrack.

n

Such individuals must be trained in the proper procedures and following established safety procedures as outlined in the national Safety Code (ANSI C2) and Electrical Maintenance (NFPA 70).

Request a quote: send us your specification for pricing and delivery.
