Pow-R-Line 4B & 4F Panelboards. Engineered to order for projects in Saudi Arabia. Price on request.

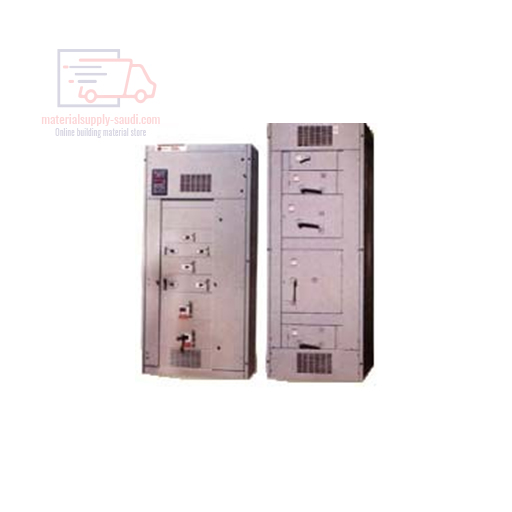

Pow-R-Line 4B & 4F Panelboards

Pow-R-Line 4B & 4F Panelboards โ€“ engineered to your project specification and supplied across Saudi Arabia for utilities, industrial plants, commercial buildings and infrastructure projects. Pricing depends on rating, configuration and quantity; contact us with your single-line diagram or specification for a quotation.

Technical Data & Available Versions

  • Pow-R-Line 4B panel board utilizes circuit breakers. Pow-R-Line 4F Panelboards utilizes types FDPW fusible switches.
  • A single chassis accommodates both circuit breakers and fusible switches.
  • Main and neutral are located at the same ends to provide additional space for branch devices.
  • Three-piece trim facilities installations.
  • Will accommodate Series C Circuit Breakers to provide higher ratings in a standard chassis and increased series ratings.
  • UL tested and listed. Meets NEC and NEMA tandards.

General Construction Features

ย WESCOSA assembled Panelboards as per Cutler-Hammer technologies are designed for sequence phase connection of branch circuit devices. This allows complete flexibility of circuit arrangement (1-, 2- or 3-poles) to allow balance of the electrical load on each phase.Sturdy rigid chassis assembly assures accurate alignment of interior with panel front; prevents flexing and minimizes possibility of loosening or damage to current carrying parts during and after installation.Four-point in-and-out adjustment of panel interior is provided to meet critical depth dimension on flush installations. This compensates for possible alignment of box at installation. Main lungs are mechanicalย  solder less type and approved for copper of aluminum conductors.

TECHNICAL DATA

ย Table 1: Panelboards Selection Guide

ย

ย

ย

ย

ย

Panelboard Type
ย

ย

ย

ย

ย

Device Type
ย

Maximum Voltage Rating
ย

Maximum Main Rating, Amperes
ย

ย

Branch Circuit

Ampere Range
Short Circuit Current

Ratings rms Symmetrical Amperes, AC
ย

ย

AC
ย

ย

DC
ย

Main Lugs Only
ย

Main Device
ย

Fully Rated (kA)
ย

Series Rated (kA)
Pow-R-Line 1a Breaker 240 - 600 600 15 โ€“ 100 10 โ€“ 22 22 โ€“ 200
Pow-R-Line 2a Breaker 240

480Y/227
250 600

600
600

600
15 โ€“ 100

15 โ€“ 100
65

14
65 โ€“ 200

22 โ€“ 150
Pow-R-Line 3a Breaker 240

480

600
250 800

800

800
600

600

600
15 โ€“ 225

15 โ€“ 225

15 โ€“ 225
10 โ€“ 200

14 โ€“ 100

14 โ€“ 35
22 โ€“ 200

22 โ€“ 150

n-
Pow-R-Line 4b Breaker 240

480

600
250 1200

1200

1200
1200

1200

1200
15 โ€“ 1200

15 โ€“ 1200

15 โ€“ 1200
10 โ€“ 200

14 โ€“ 200

14 โ€“ 200
22 โ€“ 200

22 โ€“ 150

n-
Pow-R-Line 4f Fusible Switch 240

600
250 1200

1200
1200

1200
30 โ€“ 1200

30 โ€“ 1200
100 โ€“ 200

100 โ€“ 200
-

n-

Table 2: Standard Main Lug Terminals

ย

ย

Panel Type
Wire Size Ranges for Ampere Capacity
100

Amps
ย

225 Amps
ย

250 Amps
ย

400 Amps
ย

600 Amps
ย

800 Amps
ย

1200 Amps
Pow-R-Line 1a #12โ€“1/0 #6โ€“300 kcmil - (2) #2โ€“500 kcmil - - -
Pow-R-Line 2a #12โ€“1/0 #6โ€“300 kcmil - (2) #2โ€“500 kcmil - - -
Pow-R-Line 3a #12โ€“1/0 - #6 โ€“ 350 kcmil (3) #2โ€“500 kcmil (2) #2โ€“500 kcmil (3) #2 โ€“ 500 kcmil -
Pow-R-Line 4 - - #2 โ€“ 500 kcmil (2) #2โ€“500 kcmil (2) #2โ€“500 kcmil (3) #2 โ€“ 500 kcmil (4) #2 โ€“ 500 kcmil

n

Breaker Type Ampere Rating Wire Size Ranges
BAB, HQP 15 โ€“ 70

90 โ€“ 100
#14 - #4

n#8 - #1/0
QBHW, QPHW 15 โ€“ 70

90 - 100
#14 - #4

n#8 - #1/0
ED, EDH, EDC 100 โ€“ 225 #4 - #1/0 or #6 - 300 kcmil
EHD, FDB, FD, HFD, FDC 15 โ€“ 100

125 โ€“ 225

175 - 225
#14 - #1/0

n#4 - #4/0

n#6 - #350
FCL GHB 15 โ€“ 100

15 โ€“ 100
#14 - #1/0

n#14 - #1/0
GHQ HGHB

GHBS
15 โ€“ 20

15 โ€“ 30

15 โ€“ 30
#14 - #1/0

n#14 - #1/0

n#14 - #1/0
JD, JDB, HJD, JDC 70 โ€“ 250 #4 โ€“ 350 kcmil
DK 25 โ€“ 350

400
250โ€“500 kcmil

n(2) 3/0 โ€“ 250 kcmil Or

n(1) 3/0 โ€“ 500 kcmil
KD, KDB, HKD, KDC, CKDยฉ,

CHKDยฉ
100 โ€“ 225

250 โ€“ 350

400
(1) #3 โ€“ 350 kcmil (1) 250 โ€“ 350 kcmil (1) 3/0 โ€“ 350 kcmil

n(1) 3/0 โ€“ 350 kcmil

n

Table 3: Standard Main Breaker, Branch Breaker, Main Switch or Branch Switch Terminals.

ย

Breaker Type Ampere Rating Wire Size Ranges
LD, HLD, LDC, 300 โ€“ 500 (2) 250 โ€“ 350 kcmil
CLDยฎ, 600 (2) 400 โ€“ 500 kcmil
CHLDยฎ,
CLDCยฎ
MDL, HMDL, 400 โ€“ 600 (2) #1 โ€“ 500 kcmil
CMDLยฎ, 700 โ€“ 800 (3) 3/0 โ€“ 400 kcmil
CHMDLยฎ   (2) 500 โ€“ 750 kcmil
ND, HND, 600 โ€“ 1000 (3) 3/0 โ€“ 4000 kcmil
NDC, CNDยฎ 1200 (4) 4/0 โ€“ 500 kcmil
CHNDยฎ
CNDCยฎ
LCL 125 โ€“ 225 (1) #6 โ€“ 350 kcmil
  250 โ€“ 400 (1) #4 โ€“ 250 kcmil
    And
    (1) 3/0 โ€“ 600 kcmil
FB-P 15 โ€“100 #14 โ€“ 1/0
LA-P 70 โ€“ 225 #6 โ€“ 350 kcmil
  250 โ€“ 400 (1) #4 โ€“ 250 kcmil
    And
    (1) 3/0 โ€“ 600 kcmil
NB-P 350 โ€“ 700 (2) #1 โ€“ 500 kcmil
  800 (3) 3/00 โ€“ 400 kcmil

  • 100% rated

  • 100% rated breaker



Ampere Rating


Wire Size Ranges
30, 60, 100

200
#14 โ€“ 1/0

n#4 โ€“ 300 kcmil
400 250 โ€“ 750 kcmil or

n(2) 3/0 โ€“ 250 kcmil
600 (2) #4 โ€“ 600 kcmil or (4) 3/0 โ€“ 250 kcmil
800 (3) 250 โ€“ 750 kcmil or (6) 3/0 โ€“ 250 kcmil
1200 (4) 250 โ€“ 750 kcmil or (8) 3/0 โ€“ 250 kcmil

n

Table 4: FDPW Switches

ย Note: For other terminals available on some ratings of molded case circuit breakers and FDPW fusible switches refer to MCCB CD-ROM and product guide.

Note: All terminal sizes are based on wire ampacities corresponding to those shown in NEC Table 310-16 under 750ยฐC insulation columns (75ยฐC) wire), regardless of insulation temperature is not permitted without voiding UL labels on

ย
