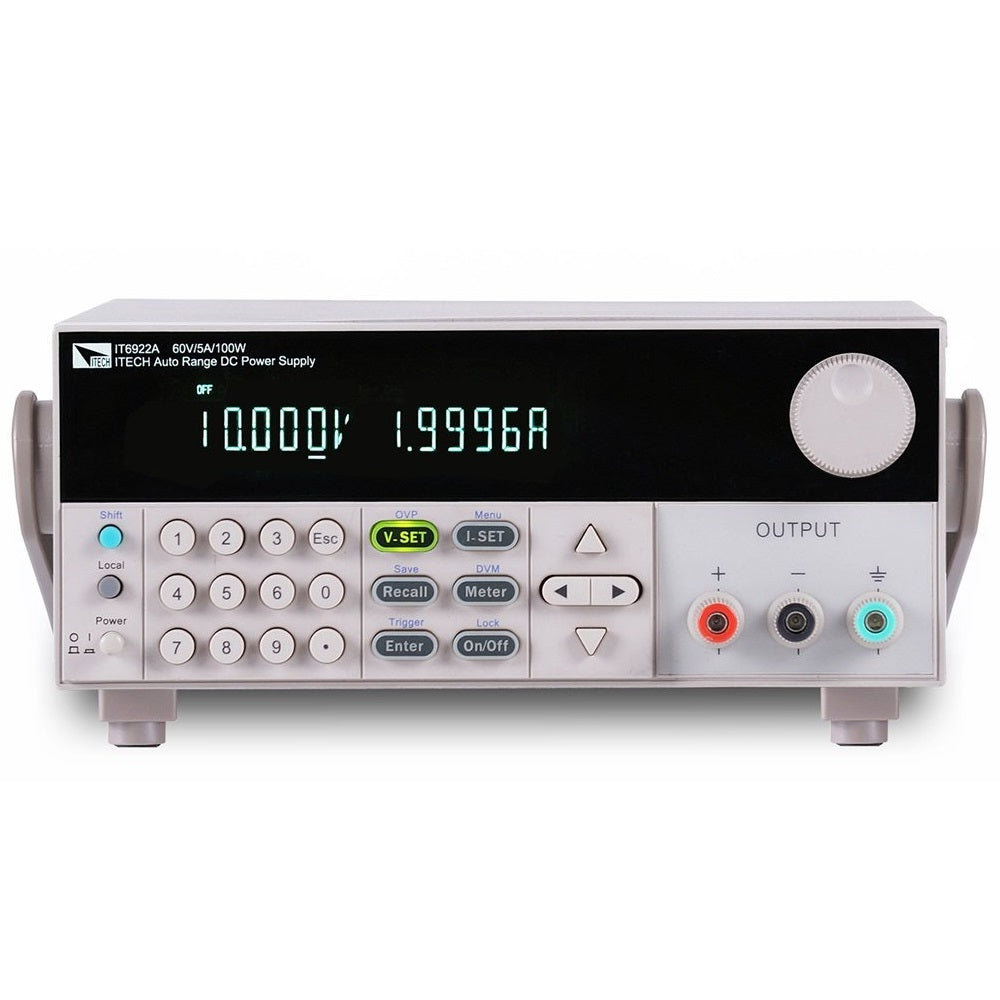

ITech IT6922A DC Power Supply 0-60V/0-5A

Price : On Request

IT6900A series wide range programmable power supply has built-in standard RS232, USB, RS485 and analog interface (RS485 and analog interface are just for IT6900B), supports SCPI protocol, facilitate remote control, industrial PLC control and the formation of intelligent test platform. Remote compensation terminals avoid the problem of inaccurate testing caused by voltage drop on the wire. Low ripple, low noise and built-in digital voltmeter make IT6900A easy to do external measurement. IT6900A can be widely used in testing DC-DC power supply module, battery charging and sensors and other test area

Category: Tags: ,
FacebookPinterestRedditDeliciousWhatsappEmail

VFD display
Adjust voltage and current via knob or numerical key pad
High accuracy and high resolution
Adjust digital step value via cursor
Output voltage and current values accordance with procedure
Output Timer(0.1 ~ 99999.9S) Function
Low ripple and low noise
Remote Sense Function
Intelligent fan control
Rich SCPI instructions to facilitate the formation of an intelligent test platform
Support front and rear panel output
Optional external analog function

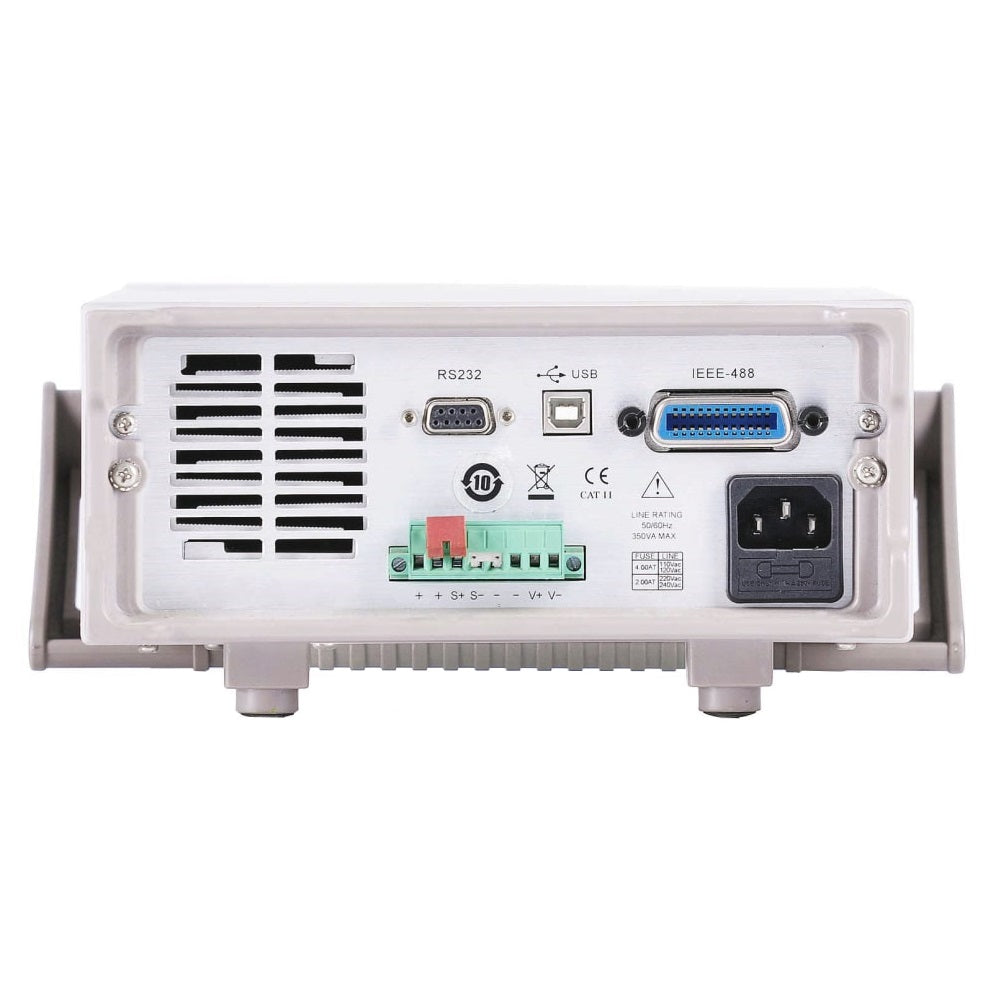

Standard communication interface RS232/USB*
Switch control for output

Additional information

Weight 5000 kg
