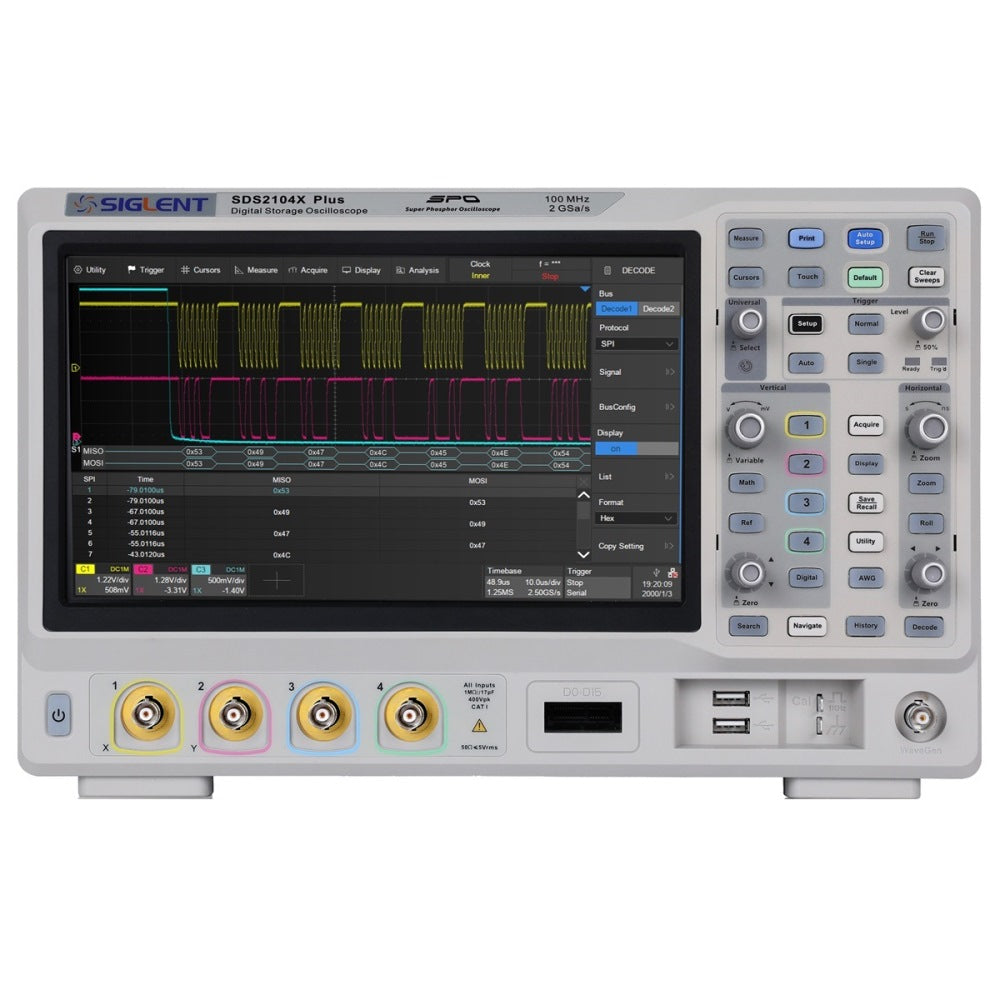

The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, sequence acquisition, and search and navigate functions allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50MHz waveform generator, as well as serial decoding, mask test, bode plot, and power analysis are also features of the SDS2000X Plus. A 10- bit acquisition mode helps to satisfy applications that require more than 8-bit resolution.?
TECHNICAL SPECIFICATIONS
350 MHz, 200 MHz, and 100 MHz models with real-time sample rates up to 2GSa/s. A 500MHz bandwidth upgrade option is available for 350MHz models.
SPO technology
– Waveform capture rates up to 120,000wfm/s (normal mode) and 500,000wfm/s (sequence mode)
– Supports 256-level intensity grading and color temperature display modes
– Record length up to 200Mpts/ch, 400 Mpts in total for all 4 channels
– Digital trigger system
Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, and Video (HDTV supported). The trigger zone helps to simplify advanced triggering
Serial bus triggering and decoder supports I2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, I2S, and MIL-STD-1553B (optional) protocols
Low background noise, features 0.5mV/div to 10V/div voltage scales
10-bit mode provides higher resolution and lower noise
Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
History waveform record (history) function for up to 90,000 triggered waveforms (frames)
Automatic measurement function on 50+ parameters, supports statistics with histogram and trend
Two math traces, support 2Mpts FFT, +, -, x, ?, d/dt, ?dt, v, average, ERES, and formula editor
Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional), and Counter
16 digital channels (optional)
Built-in 50MHz waveform generator (optional)
