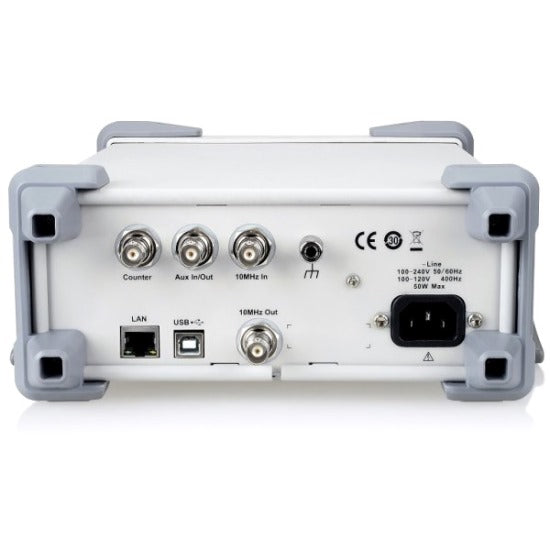

Siglent SDG6032X 350MHz, 2 Channels Function / Arbitrary Waveform Generator

Price : On Request

Siglent’s SDG6000X is a series of Dual-Channel Pulse / Arbitrary Waveform Generators that feature up to 500MHz bandwidth, a maximum sample rate of 2.4GSa/s, and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that helps to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square, and pulse waveforms. In addition, the SDG6000X is a multi-function device that can generate Noise, IQ signals, and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.

Category: Tags: , ,
FacebookPinterestRedditDeliciousWhatsappEmail

FEATURES

Dual-Channel, 500MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range

High-performance sampling system with 2.4GSa/s sampling rate and 16-bit vertical resolution and multi-function signal generator, meeting requirements in a wide range

Continuous Wave Generator:?Up to 500MHz sine wave, supporting sweep and user-defined harmonics. Low-cost replacement of RF signal generators below 500MHz

Pulse Generator:?Up to 150MHz Pulse, with finely adjustable width, rising edge, and falling edge; 3.3ns minimum width and 1ns minimum edge at a full frequency range

Function Arbitrary Waveform Generator:?Basic Function / Arbitrary Waveform Generator and complex signals generating capability including modulation, sweep, burst, and waveform combination

IQ Signal Generator:?Base Band and IF IQ signals supporting basic modulation and an arbitrary symbol rate between 250 Symb/s?to 37.5 MSymb/s

Noise Generator:?Up to 500MHz bandwidth White Gaussian Noise with adjustable bandwidth

PRBS Generator:?Up to 300Mbps PRBS3?to PRBS32 with fine bit rate and edge adjustments

Additional information

Weight 5000 kg
