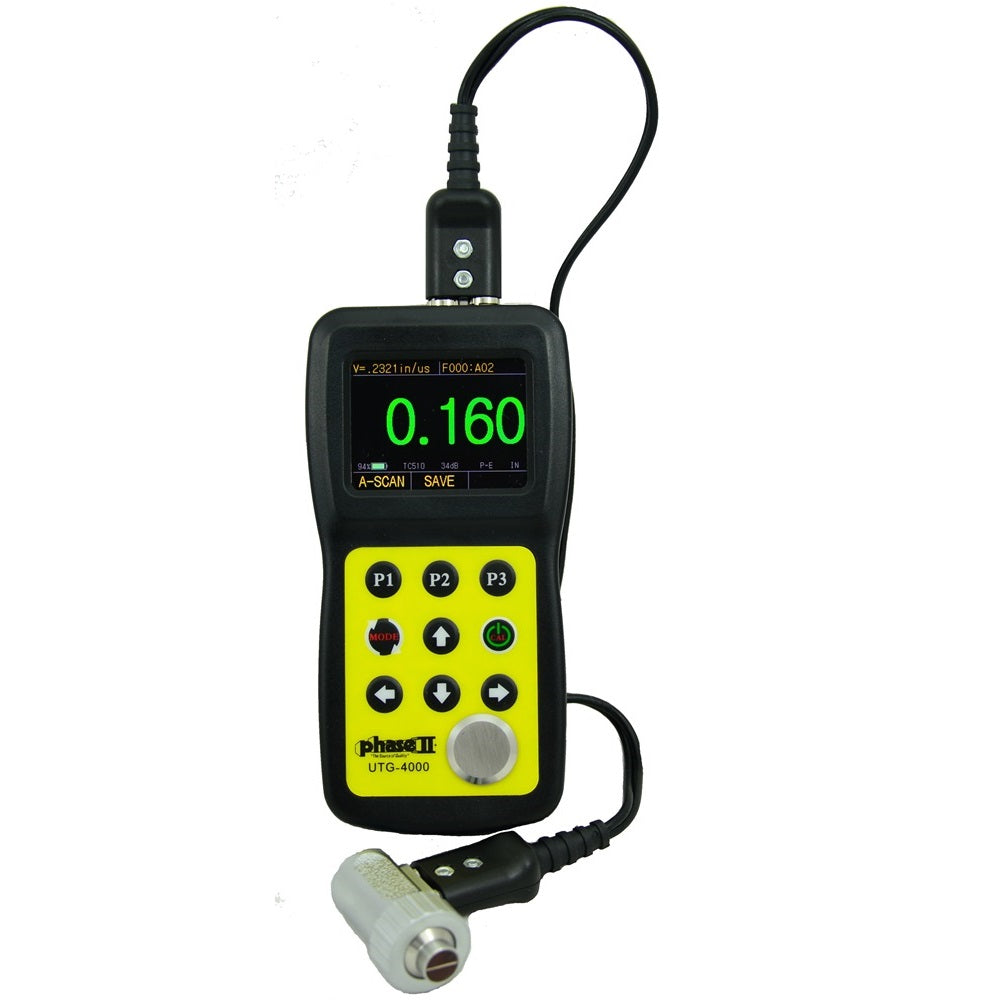

The UTG-4000 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
Specifications:
Model No. UTG-4000
Operating Principle: Ultrasonic Pulse/Echo and Echo to Echo method with dual element probe
Display type: 2.4 Color Screen
Resolution: 0.001?, .01 /0.01mm (Inch/Metric selectable)
Measuring Range: 0.02-20.0 Dependant upon probe & material
Repeatability: +/-.001? (+/-0.05mm)
Sound velocity range: 0.0197-0.3937in/us (500-9999m/s)
Measuring Error: 0.001?(up to 0.984); 0.007(up to 3.03); 0.019( 4 and above)
Display Modes: Digital Thickness Readout, A-scan or B-scan, Min/Max Capture, Diff-Value / Reduction
V-Path Correction: Automatic
Update Rate: Selectable: 4Hz, 8Hz, 16Hz
Refresh rate: 4/second
Alarm Settings: Min/Max Alarm; Dynamic waveform color change on alarm
Operating temperature: 14-122°F (-10°C – +50°C)
Auto Shut-Off: After 5 minutes
Power supply: 3v AA alkaline batteries (2pc)
Operating Time: Approx. 36 hours
Dimensions: 6.02? x 2.99? x 1.45? (153 x 76 x 37mm)
Weight: 9.9oz (280g)
