Specification:
Range: 75-100mm
Resolution: 0.001mm
Accuracy: +/- 0.002mm
SPC Output: No
Ratchet Stop
Flatness: 0.000012″/0.0003mm
Parallelism: 0.00008″/0.002mm for models up to 4″/100mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water protection level: IP65

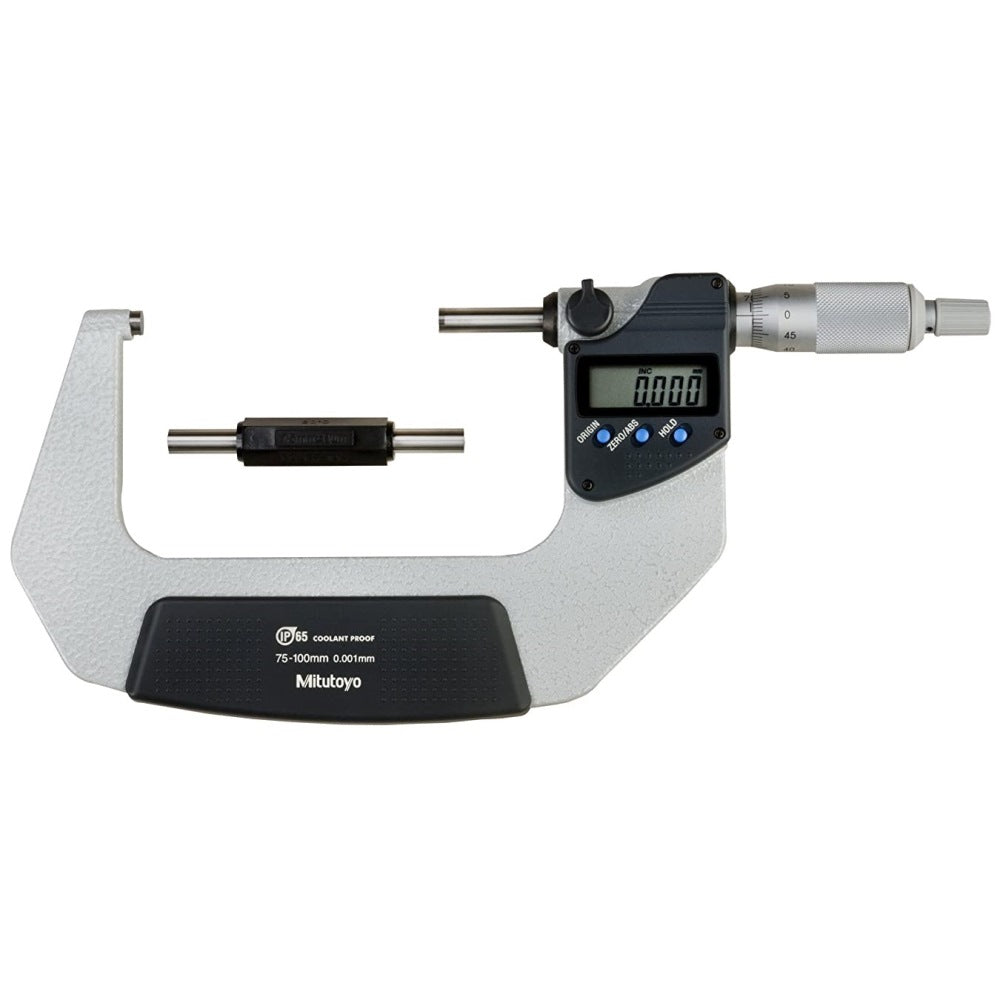

Mitutoyo 293-243-30 Digimatic Micrometer, Range 75-100mm IP65 Ratchet Stop-No SPC
Price : On Request
Mitutoyo new model 293-243-30 Digimatic micrometer features the NEW electromagnetic ABSOLUTE sensor, improving resistance to environmental conditions such as dirt, oil and water that can cause false readings. The coolant Proof Micrometer has a measuring range of 75-100mm with a Ratchet Stop. This Series features IP65 level of protection, enabling use in environments exposed to cutting oil, etc., a Zero-set key for easy origin setting, Carbide tipped measuring faces and comes in a fitted plastic case. Also includes Automatic power on/off feature and data hold as well as low voltage and counting value composition error alarms.
Additional information
| Weight | 1000 kg |
|---|
