Type: L
Display unit (mm/inch): mm + inch
Application: Internal measurement
Measuring span Mes: 1.97 inch
Measuring range Meb: 0.59-2.56 inch
Range of indication Azb: 0.571-2.579 inch
Numerical interval Zw:?0.00005 / 0.0001 / 0.0002 / 0.0005 / 0.001 / 0.002 inch
Maximun permissible errors G: 0.002 inch
Repeatability limit r: 0.001 inch
Measuring force F minimum: 1.0 N
Measuring force F maximum: 1.8 N
Type of measuring contact movable: HM-Ball 0.06 inch
Measuring contact movable Hb: 0.24 inch
Type of measuring contact fixed: HM-Ball 0.06 inch
Measuring contact fixed Hf: 0.24 inch
Measuring contact thickness maximum: 0.07 inch
Measuring depth maximum L: 7.4 inch
Weight: 415 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67
OPTIONAL ACCESSORIES

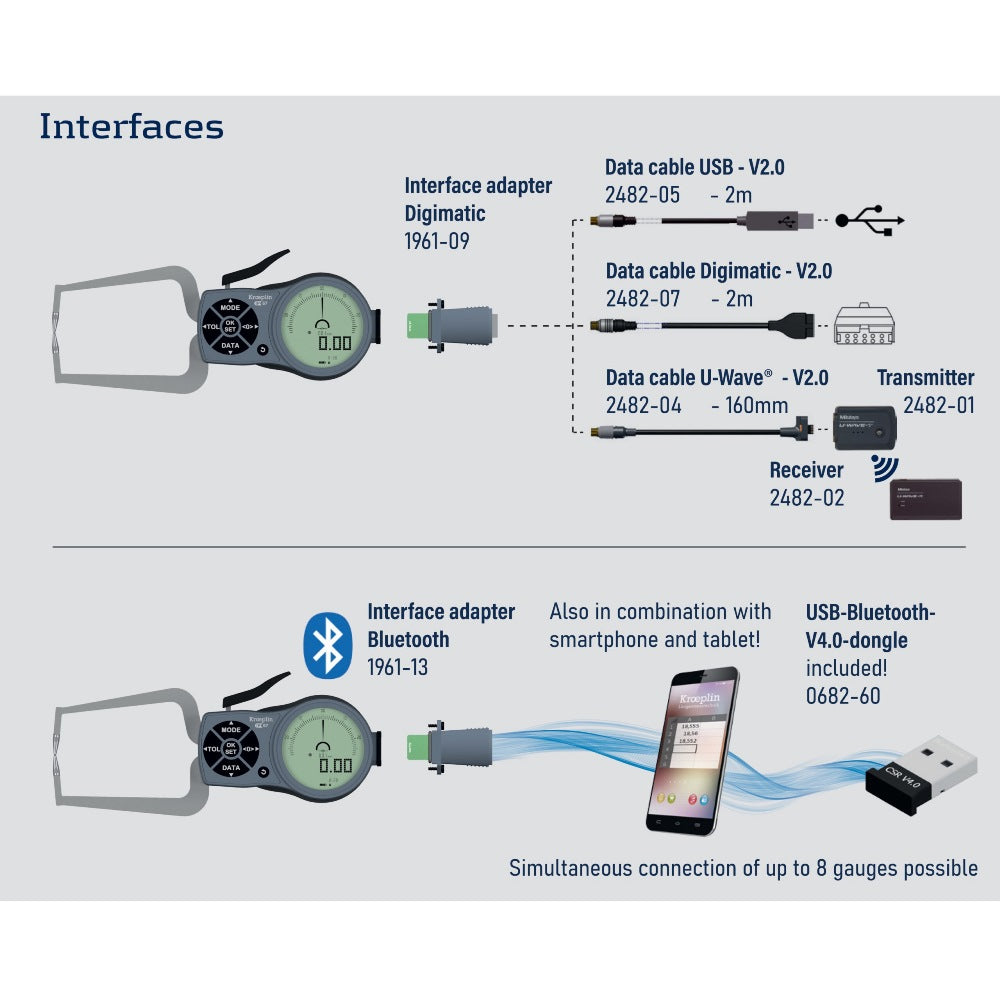

Interface Bluetooth: Order no. 1961-13
Wooden box: Order no. 1732-71
Holding unit: Order no. 8007-10
