Type: K
Display unit (mm/inch): mm + inch

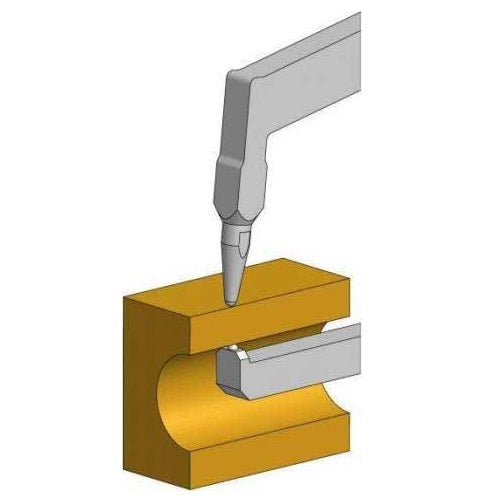

Application: Measurement of tube wall thickness

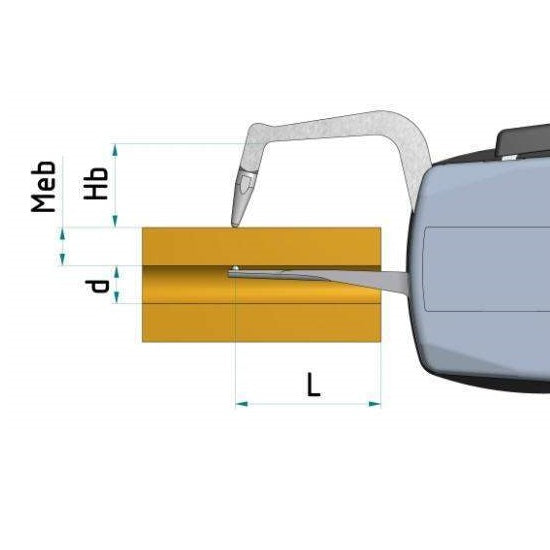

Measuring span Mes: 20 mm
Measuring range Meb: 0-20 mm
Range of indication Azb: 0-20.5 mm
Numerical interval Zw: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm
Minimum Bohrungs-Durchmesser d: 9 mm
Maximum permissible errors G: 0.03 mm
Repeatability limit r: 0.01 mm
Measuring force F minimum: 1.1 N
Measuring force F maximum: 1.6 N
Type of measuring contact movable: HM-Ball 1.5 mm
Measuring contact movable Hb: 24.7 mm
Type of measuring contact fixed: HM-Ball 1.5 mm
Measuring contact fixed Hf: 2.5 mm
Measuring depth maximum L: 80 mm
Weight: 290 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67
OPTIONAL ACCESSORIES
Interface Bluetooth: Order no.?1961-13
Wooden box: Order no. 1732-65
Holding unit: Order no. 8007-10
