Type: D
Display unit (mm/inch): mm
Application: External measurement
Measuring span Mes: 50 mm
Measuring range Meb: 0-50 mm
Range of indication Azb: 0-50.5 mm
Scale interval Skw: 0.05 mm
Maximum permissible errors G: 0.05 mm
Repeatability limit r: 0.025 mm
Measuring force F minimum: 0.8 N
Measuring force F maximum: 1.7 N

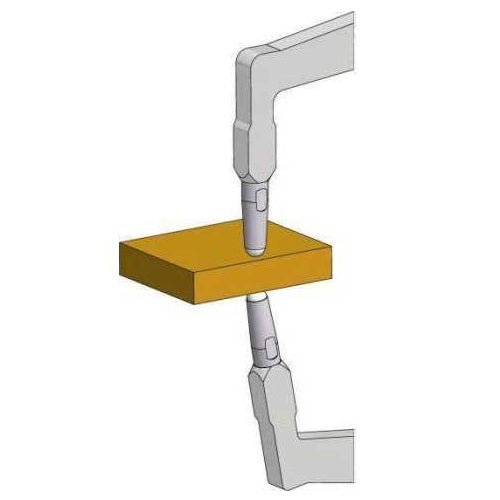

Type of measuring contact movable: HM-Ball 3 mm
Measuring contact movable Hb: 30 mm
Measuring contact fixed Hf: 30 mm
Measuring contact thickness maximum: ? 4 mm
Measuring depth maximum L: 167 mm
Weight: 430 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP65
OPTIONAL ACCESSORIES
Wooden box: Order no. 1732-51
Holding unit: Order no. 8004-55
