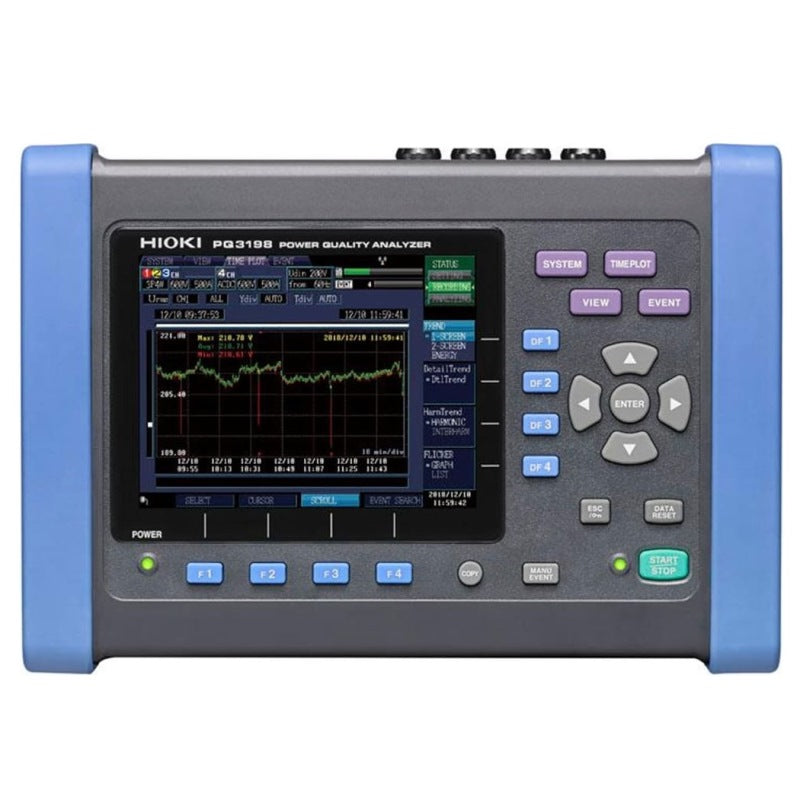

Hioki PQ3198-94 Power Quality Analyzer

Price : On Request

FEATURES

  • Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
  • Maximum 6000V peak transient voltage up to 700kHz and Measure up to 6000A AC
  • Easily create reports with bundled PQ ONE application software and High accuracy and continuous gapless recording
  • Make simple measurements of inverters with 40 to 70Hz fundamental frequency and max. 20kHz carrier frequency
  • Broadband voltage range lets you measure even high-order harmonic (superharmonic) components of up to 80kHz

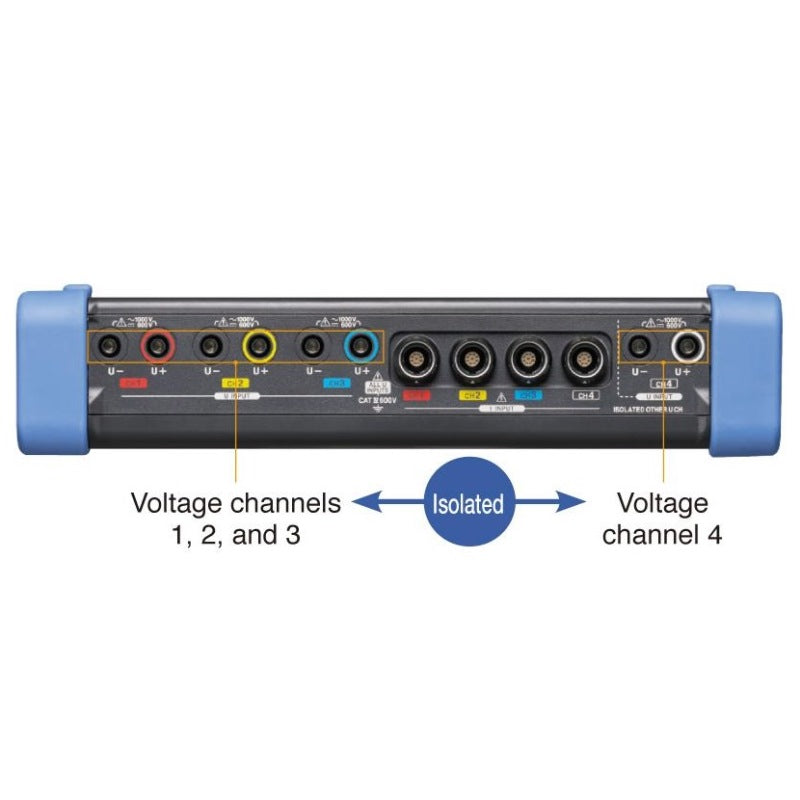

  • Two systems of power measurement and efficiency calculation for ch 1, ch 2, ch 3, and ch 4
  • Optional GPS BOX for synchronizing multiple devices
Category: Tags: ,
FacebookPinterestRedditDeliciousWhatsappEmail

Hioki portable power meters and analyzers are best-in-class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The new and improved PQ3198-94 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.

Additional information

Weight 3000 kg
