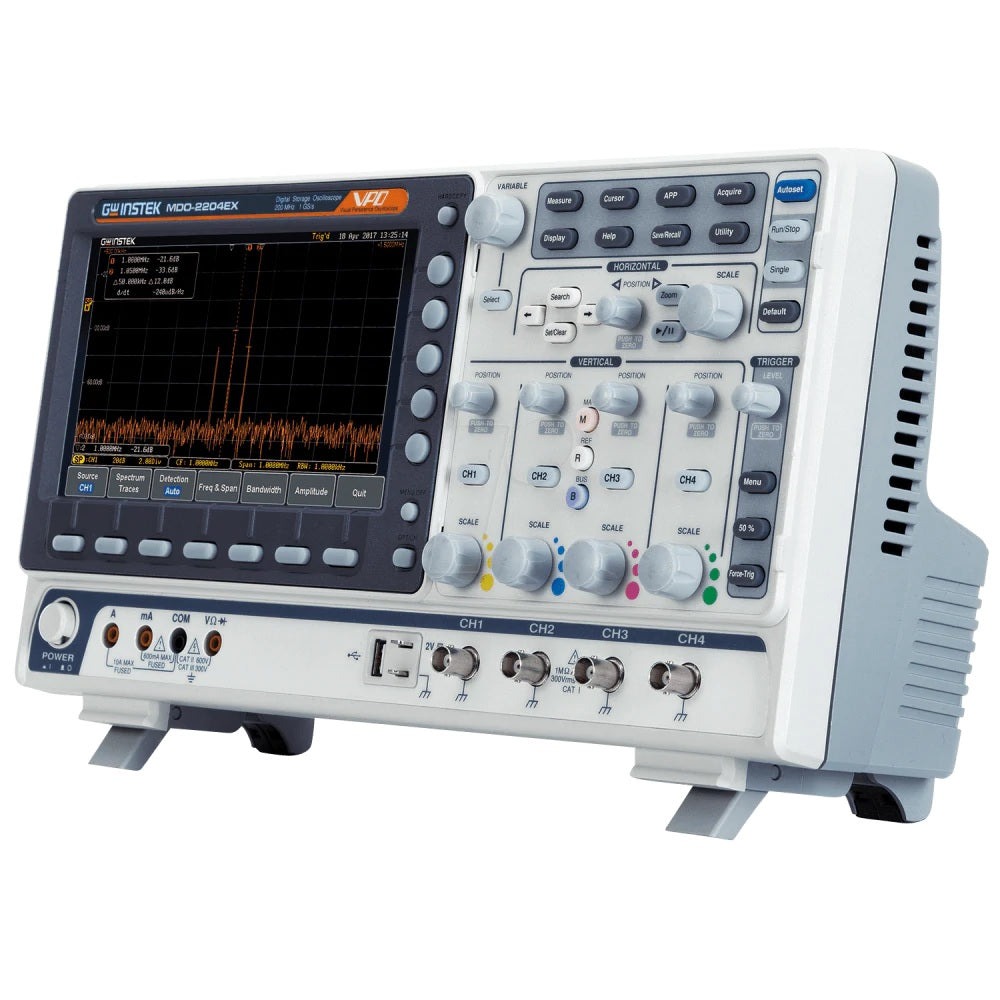

GW Instek MDO-2204EX 200MHz 4 Channel Mixed Domin Oscilloscope

Price : On Request

MDO-2000E series is a multi-functional mixed-domain oscilloscope. The series includes two feature combinations: MDO-2000EG and MDO-2000EX. MDO-2000EG models have a built-in spectrum analyzer and a dual channel 25MHz arbitrary waveform generator and MDO-2000EX models feature a built-in spectrum analyzer, arbitrary waveform generator, a 5,000 count DMM and a 5V/1A power supply. The first of its kind MDO-2000EX is the only oscilloscope equipped with a DMM and a power supply in the T&M industry.

Category: Tag:
FacebookPinterestRedditDeliciousWhatsappEmail

SPECIFICATIONS

200/100/70MHz bandwidth selections
Number Of Channels: 4
Real time sample rate for each channel is 1GSa/s (2 channel models)
Maximum real time sample rate is 1GSa/s (4 channel models)
Per Channel 10M memory depth and VPO waveform display technology
Waveform update rate up to 120,000 wfms/s
8 inch WVGA TFT LCD display
Free Frequency Response Analyzer Software
Maximum 1M FFT provides higher frequency domain resolution measurements
High, low and band pass filter functions
29,000 segmented memories and waveform search functions
I2C/SPI/UART/CAN/LIN serial bus trigger and decoding function
Data log function is able to track signal changes up to 1000 hours
Network storage function
Mask test function

Additional information

Weight 5000 kg
