- The frame and blades are of high quality extruded aluminum profiled construction with the advantages of corrosion resistance and rigidity.
- Deflection blades are fixed rigidly to the frame at an angle of 45° to the horizontal plane.
- Removable 12 mm thick aluminium washable filter is placed at the back of the grille.
- Grille frame is fixed to the main frame by 1) Hinges on one side and screw on the other side. 2) Pushing the snap-in type grille frame using spring clip.
- Filter can be removed easily by opening the grille frame.
- Total assembly will be same as ARG-H, with removable 12 mm thick aluminium filter.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage

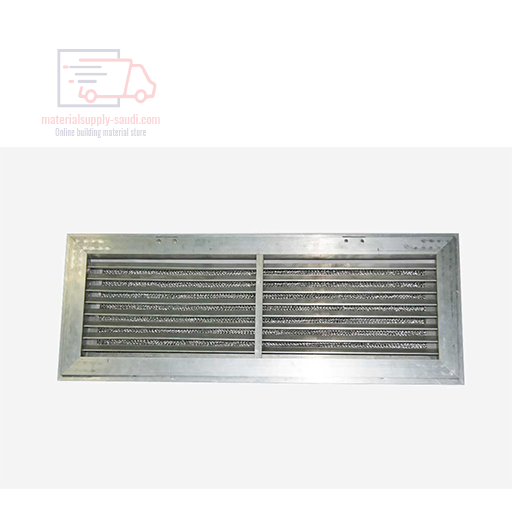

Fresh Air Grille – AFAG(HVACGR/024)
Price: on request
Construction:
Frame: High quality extruded aluminium profile with 30 mm flange width as standard.12, 20, 24 mm flange widths are optional.
Blades: Aerofoil blades from aluminium profiles.
Blade spacing: 20 mm as standard.
Filter frame: 1 mm thick aluminium sheet. Filter media: Aluminium mesh.
