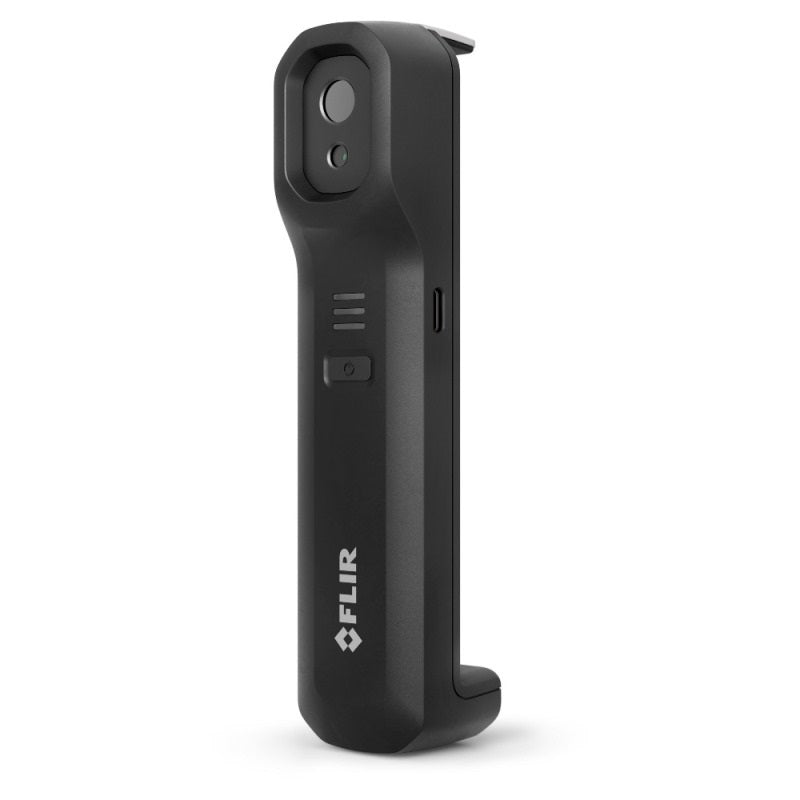

FLIR ONE Edge Pro Thermal Camera With Wireless Connectivity

Price : On Request

FEATURES

  • EASILY INSPECT ANYWHERE
    Conveniently scan targets out-of-reach or out-of-view from any angle, or clip the FLIR ONE Edge Pro to your smart device for one-handed operation
  • HIGH-QUALITY IMAGES AND PERFORMANCE
    Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160?x 120 (19,200 pixels) thermal resolution
  • ENHANCE YOUR WAY OF WORKING
    Featuring FLIR Ignite cloud service, compatibility with FLIR Thermal Studio, and step-by-step guidance for FLIR-specific apps, The FLIR ONE Edge Pro can help you improve efficiency and scale your thermography inspection program
Category: Tags: ,
FacebookPinterestRedditDeliciousWhatsappEmail

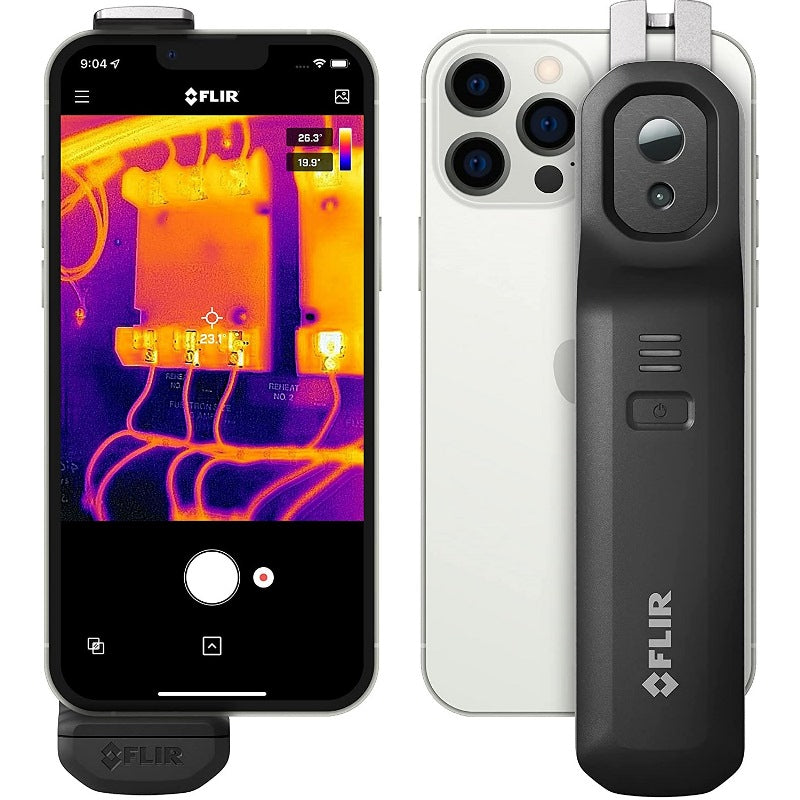

The innovative FLIR ONE Edge Pro wirelessly connects to your smart device so you can easily inspect targets that are out of reach or clip them onto your phone or tablet for one-handed operation. Combining VividIR? and FLIR MSX? (Multi-Spectral Dynamic Imaging), you can take crisp thermal images from any position or angle with a natural grip. FLIR Ignite? allows you to instantly upload images and videos from your FLIR ONE Edge Pro to the cloud where you can edit, organize, store, and share data. Compatible with iOS and Android smartphones and tablets, the FLIR ONE Edge Pro can be used without limitations, regardless of carrier, operating system, or future smart device upgrades.

SPECIFICATIONS

Thermal Resolution: 160 x 120 (19,200 pixels)
?Battery Life: Approximately 1 hour 30 minutes
Object Temperature Range: -20 to 120?C (-4 to 248F) and 0 to 400C (32 to 752F)
Accuracy: 3C (5.4F) or 5%. Applicable 60 seconds after start-up when the unit is within 15 to 35C (59 to 95F) and the scene is within 5 to 120C (41 to 248F)
Operating Temperature: -10 to 50C (14 to 122F), battery charging 0 to 45C (32 to 113F)
Spot Meter: Hottest, Coldest, and 3-spot measurement

IMAGING & OPTICAL
Adjustable MSX Distance: 30cm – Infinity
Focus: Fixed 30cm – Infinity
Frame Rate: 8.7Hz
HFOV/VFOV: 54  ?1?/42 ?1?
Image Modes: Infrared, visual, MSX
Palette: Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava, and Color Wheel
Shutter: Automatic/Manual
Thermal Resolution: 160 x 120 (19,200 pixels)
Thermal Sensitivity/NETD: 70mK
Thermal Sensor: Pixel size 12m, 8 to 14m spectral range
Visual Resolution: 640 x 480
VividIR: Yes

POWER
Battery Charge Time: 60 to 90 minutes for fully charged, 15 minutes charging, from the empty battery, gives 40?minutes?operating time
Battery Life: Approximately 1 hour 30 minutes
Charging Method: Female USB-C (5V/1A)

GENERAL
Battery Charge Monitor: 0 to 100%
Clip Span: 130mm (min)/195mm (max)
Device Compatibility: iOS or Android smartphones and tablets
Dimensions (H x W x D): 37.5 x 35 x 149mm (1.5 x 1.4 x 5.9-inch)
