- Frame is construction from the high quality extruded aluminum profiles with the advantage of corrosion resistance and rigidity.
- Aluminium egg crate core of 12.5 mm x 12.5 mm x 12.5 mm size is fixed rigidly to the frame.
- Egg Crate Grilles fixed with opposed blade damper for controlling exhaust air flow.
- Foam gasket is sealed around the back of the frame as option to avoid air leakage.
- Rigid construction provides noiseless performance.
- Designed for return and exhaust applications for conditioned space.
- Model AER is available with Damper.
- Damper blades are fixed to the frame by nylon bushes.
- Damper blades can be screw operated from the face opening.

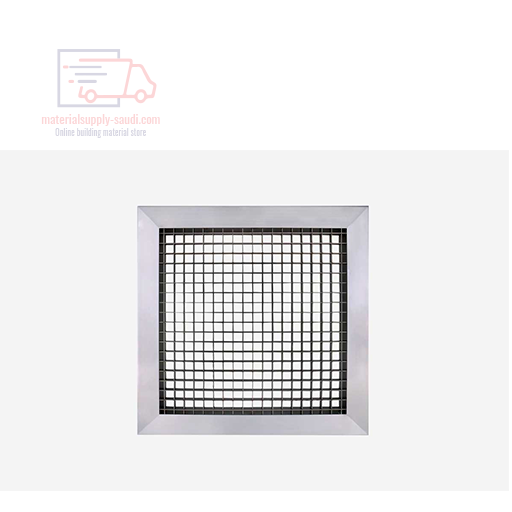

Egg Crate Grilles – AER(HVACGR/010)
Price: on request
Construction:
Frame: Extruded Aluminium of 30mm width. 12, 16, 24 mm widths optional
Egg Crate Core:12.5 mm x 12.5 mm x 12.5 mm Aluminium grid
