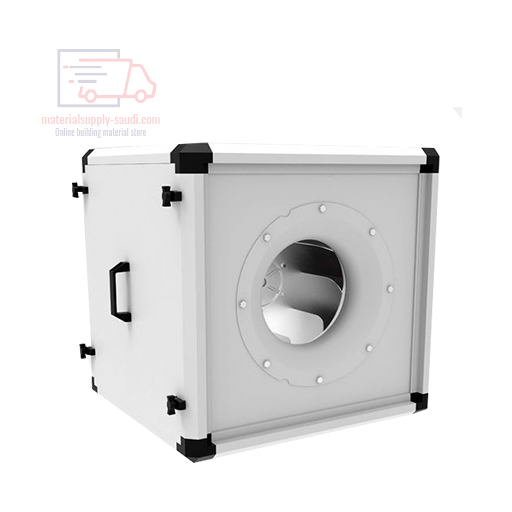

Unobox-ME

Unobox-ME for ventilation and air movement in commercial kitchens, buildings, factories, warehouses and farms across Saudi Arabia.

Technical Details

Properties

• flow rates up to 20,000 m³/h
• size: 355 - 630 mm (impeller diameter)
• motor out of air stream
• high conveying media temperatures possible
• backward curved impellers
• removable control cover for easy cleaning
• discharge upward (standard), operating side can be exchanged
• with built-in emergency stop

• Impellers

  Backward curved impellers made of high-performance aluminium are used.


  Electrical connection

  Connection will be done on the frontal mounted emergency switch.


  Direction of rotation

  The direction of rotation of the impellers is standard clockwise rotation (seen from the suction side). Counter-clockwise operation will cause overload damage to the motor.

Price: the listed price is the starting price for the smallest / basic model in this range. Larger sizes and options are priced on request.
