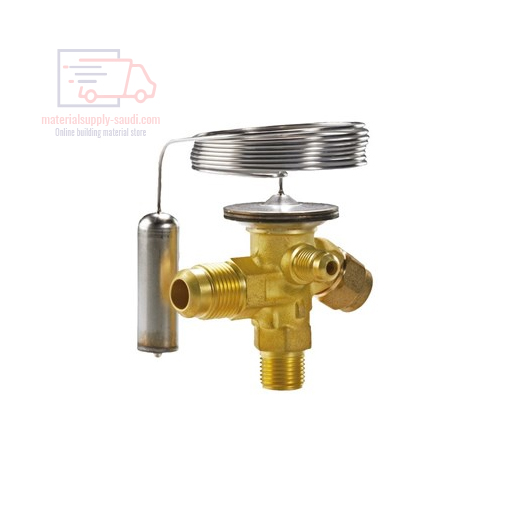

Thermostatic expansion valve R404A/R507A,TE2

Refrigeration spare part for cold rooms, display chillers and commercial refrigeration systems. Supplied across Saudi Arabia for refrigeration contractors and maintenance teams.

Technical Details

Gross weight - 0.32 kg
Net weight - 0.29 kg
Body material - Brass
Capillary tube length [in] - 59 in
Capillary tube length [mm] - 1500 mm
Direction - Angleway
Equalization connection type - FLARE
Equalization size [in] - 1/4 IN
Flow direction - Bi-flow with orifice 01-05
Flow direction indicator - Embossed 1-way arrow
Inlet size [in] - 3/8 IN
Max. Working Pressure [bar] - 34 bar
Max. Working Pressure [psig] - 500 psig
Outlet connection type - FLARE
Outlet size [in] - 1/2 IN
Refrigerants - R404A/R507A
Static Superheat (SS) [°C] - 4 °C
Static Superheat (SS) [°F] - 7.2 °F
Superheat setting Adjustable
Temperature range [°C] [Max] -10 °C
Temperature range [°C] [Min] - -40 °C
Temperature range [°F] [Max] - 50 °F
Temperature range [°F] [Min] - -40 °F
Type - TE 2

Price: per item as described (pack quantities as stated in the description). Contact us for bulk and contractor pricing.
