Tekneka VSC203T Pipe Inspection Video Scope, Range 35 Meter Cable

Price : On Request



FEATURES

  • Large 7-inch super-bright LCD color HD monitor with sunshade cover
  • Length 35m fiberglass 6.8mm push rod
  • Built-in 15 x LED with 4 levels of brightness control buttons
  • Records video with local audio at the same time and screen capture
  • The cable reel is out of the box, easy to clean, and won’t cause dirtying in the control box
  • One push button to record and reset the distance counter to zero
  • Cable insertion distance counter is displayed on the screen
  • SD card slot to store images, and videos with local audio recording
  • Inbuilt innovative braking system to control the cable rolling
  • Rotatable cable reel mounted to the case for convenient operation
  • Ability to go through 90 bends in 45mm pipes
  • A wireless keyboard helps users to add inspection notes quickly
  • Easy to carry, charge, and convenient transportation

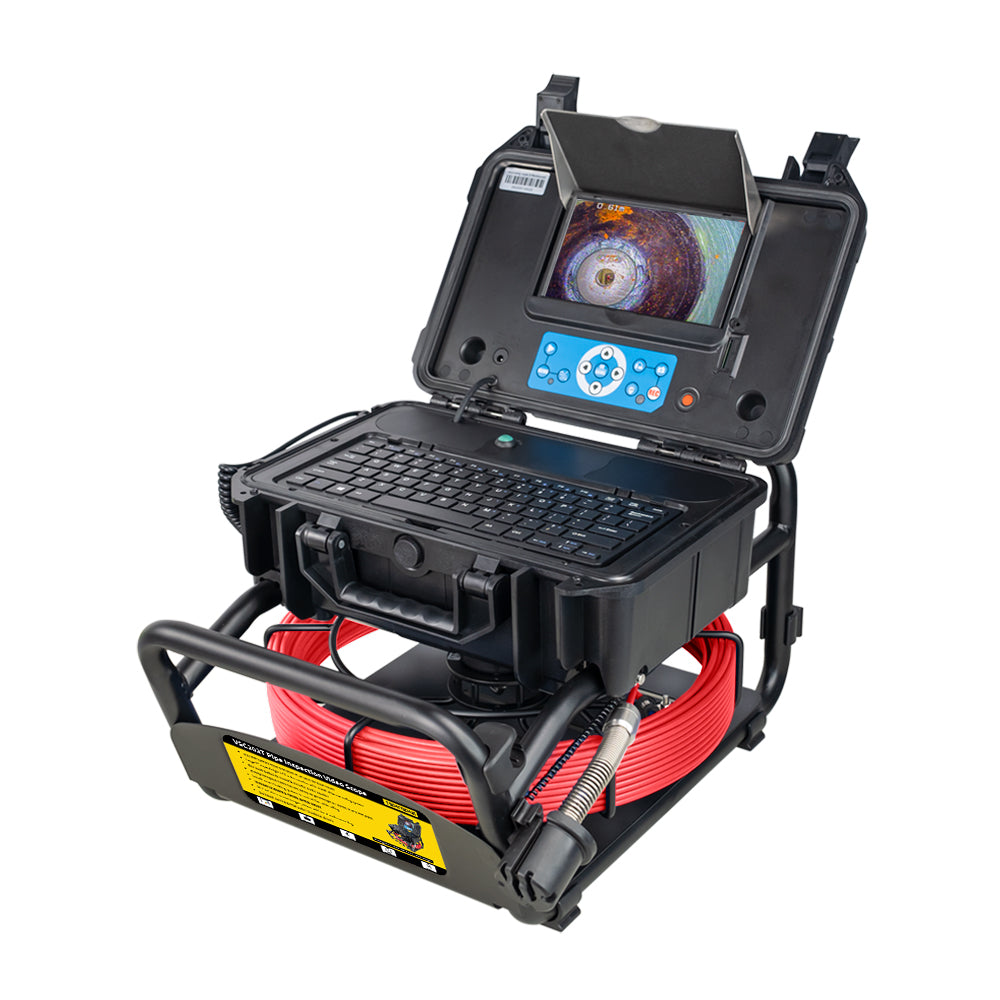

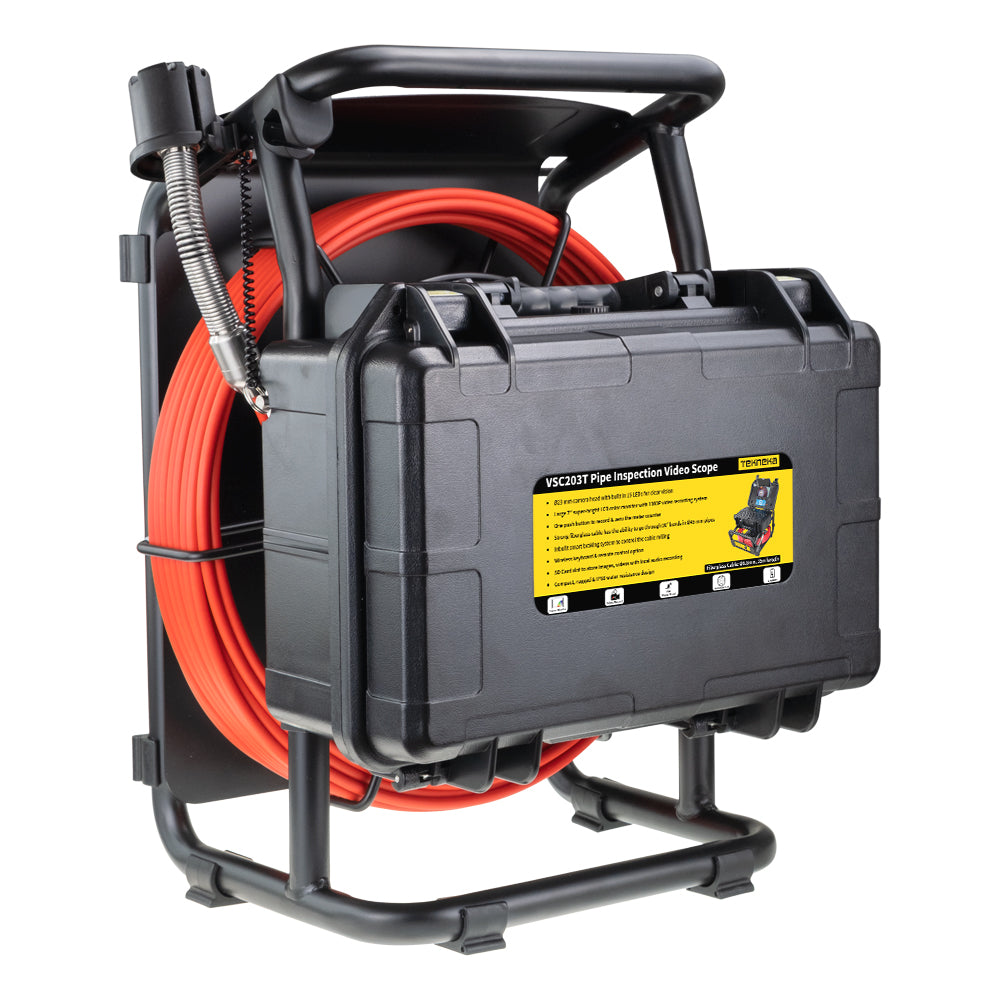

The Tekneka VSC203T is a professional pipe inspection camera that comes with 35 meters (6.8mm) fibreglass cable, a unique design with a distance counter. It comes with a keyboard for easy use. This has a high-quality 7-inch LCD monitor with a user-friendly menu structure and easy-to-export stored data. This device is equipped with a 23mm Sony CCD camera to head up to 120 wide vision angle. It can give HQ videos and images. This video scope is specially designed to inspect sewers, pipes, air ducts, underground cable pipes, etc. The Tekneka VSC203T is delivered in a waterproof case which is mounted directly on the rotatable wheel and is convenient during transport. It is equipped with a rechargeable battery that lasts up to 6 hours on mobile working.

APPLICATIONS

The Tekneka VSC203T video scope is widely used in pipelines, Drain, Sewer, Duct, Chimneys, Machinery, Building inspection, Maintenance of plumbing, and Wiring behind walls.

PACKING INCLUDES

Camera head 23mm
Waterproof monitor-mounted control box
Fiberglass cable 35m
Cable guide 46 and 80mm
Battery pack
Remote control and memory card
Wireless keyboard
Screwdriver, Allen key, and Screws
Power adapter
Car charging adapter

Additional information

Weight 15000 kg
