Steel Type with 2 Speed Motor (EX/FNS/CMS/018)

Material Supply SKU #: Z-STEEL-TYPE-WITH-2-SPEED-MOTOR-5655

SAR 335.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

Steel Type with 2 speed motor. Starting from SAR 335; other sizes on request. Item code EX/FNS/CMS/018.

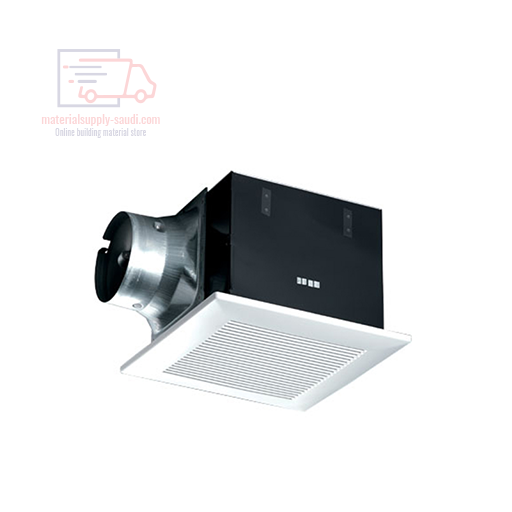

Steel Type with 2 speed motor

Steel Type with 2 speed motor for ventilation and air movement in commercial kitchens, buildings, factories, warehouses and farms across Saudi Arabia.

Technical Details

Super low noise with the distinctive design of “Resonance-Absorption Structure”

New taper blade design to achieve strong and smooth ventilating performance

Better durability with new ball bearing type motor

Reverse flow prevention shutter (shutter deflection if slight, resulting in further improvement of air tightness)

2 speed motor for better durability

Specifications :

Model	:	27CHH
RPM	:	High 570 Low 480
Capacity (CFM)	:	194
Motor W	:	28
Motor Rating	:	220-240V / 50 Hz
Motor Type	:	4 Pole Condenser
Noise Level (dB)	:	34
Net Weight (kg)	:	4.40

Accessories :

Dimension :

Model	:27CHH	:32CDH	:38CDG	:38CHG
A	:307	:357	:422	:422
B	:284	:334	:399	:399
C	:140	:190	:375	:375
D	:240	:240	:255	:255
E	:112	:112	:255	:255
F	:260	:310	:374	:374
G	:307	:357	:72.3	:72.3
H	:19	:19	:142	:142
I	:330	:380	:158	:158
J	:100	:100	:376	:376
K	:43	:68	:450	:450
L	:70	:70	:250	:250
M	:148	:148	:22	:22
N	:100	:100	:108	:108
O	-	-	:55	:55
P	:112	:112	:127	:127
Installation space	:270 x 270	:320 x 320	:385 x 385	:385 x 385
Applicable pipe	:Ø150	:Ø150	:Ø150	:Ø150

n

n

Price: the listed price is the starting price for the smallest / basic model in this range. Larger sizes and options are priced on request.
