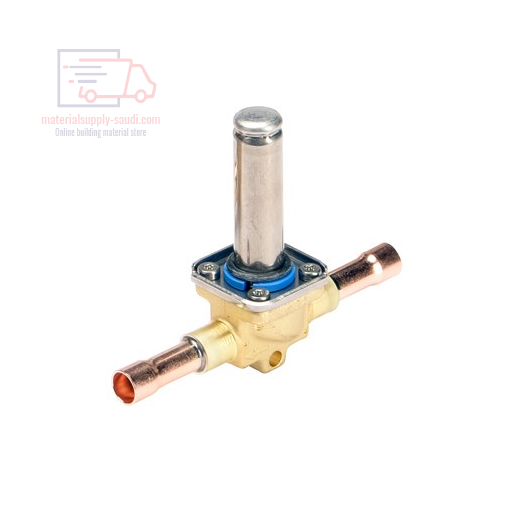

Solenoid valve EVR 6-MS/SV/002

Gross weight – 0.29 kg
Net weight – 0.2 kg
Actuator system [mm] – 13.5 mm
Ambient temperature – -40 – 80 °C
Ambient temperature range [°F] [Max] – 175 °F
Ambient temperature range [°F] [Min] – -40 °F
Approval – UL EAC LLC CDC EURO-TYSK
Coil – No
Cv value [gal/min] – 1.15 gal/min
Direction – Straightway
Function – NC
Inlet connection type – FLARE
Inlet size [in] – 3/8 IN
Inlet size [mm] – 10 mm
Kv value [m³/h] – 1 m³/h
Manual operation option – No
Max. Working Pressure [bar] – 45.2 bar
Max. Working Pressure [psig] – 655 psig
MaxOPD[bar] 10W AC – 38 bar
MaxOPD[bar] 20W DC – 28 bar
MaxOPD[bar] coil BJ/BX – 38 bar
MaxOPD[psi] 10W AC – 550 psi
MaxOPD[psi] 20W DC – 406 psi
MaxOPD[psi] coil BJ/BX – 550 psi
Medium temperature range [°C] [Max] – – 105 °C
Medium temperature range [°C] [Min] – -40 °C
Medium temperature range [°F] [Max] – 221 °F
Medium temperature range [°F] [Min] – -40 °F
MinODP [bar] – 0.03 bar
MinODP [psi] – 0.44 psi
MOPD[bar/psi] – COIL DEPENDEND
Orifice size [mm] – 6 mm
Outlet connection type – FLARE
Outlet size [in] – 3/8 IN
Outlet size [mm] – 10 mm
