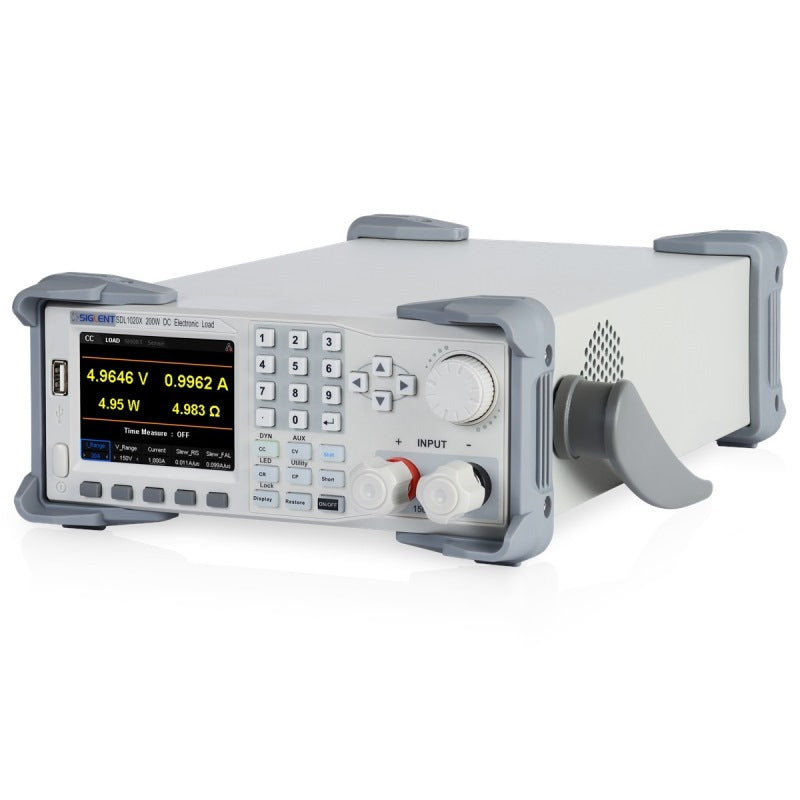

Siglent SDL1020X-E Programmable DC Electronic Load (150V / 30A / 200W)

Material Supply SKU #: Z-SIGLENT-SDL1020X-E-PROGRAMMABL-1238

SAR 2,128.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

FEATURES

SDL1020X-E (Single channel ): DC 150V / 30A, and total power up to 200W
4 Static / Dynamic modes: CC/CV/CR/CP
CC Dynamic mode: Continuous, Pulsed, Toggled
CC Dynamic mode: 25kHz, CP Dynamic mode: 12.5kHz, CV Dynamic mode: 0.5Hz
Measuring speed of voltage and current: up to 500kHz
Adjustable current rise time range: 0.001A/us to 2.5A/us
Minimum readback resolution: 0.1mV, 0.1mA
Short-circuit, Battery test, CR-LED mode, and Factory test functions

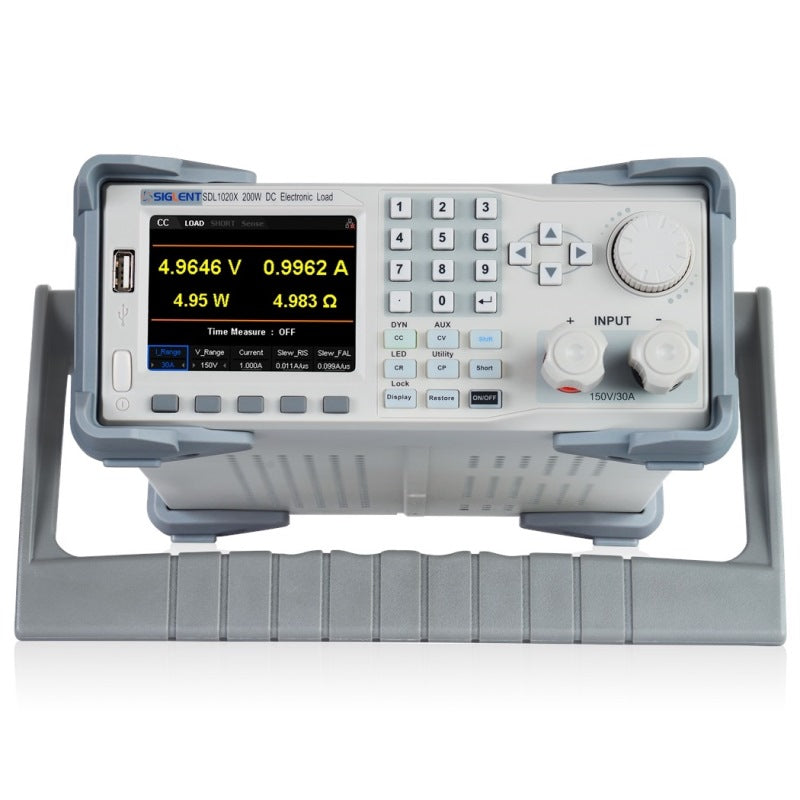

3.5-inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously

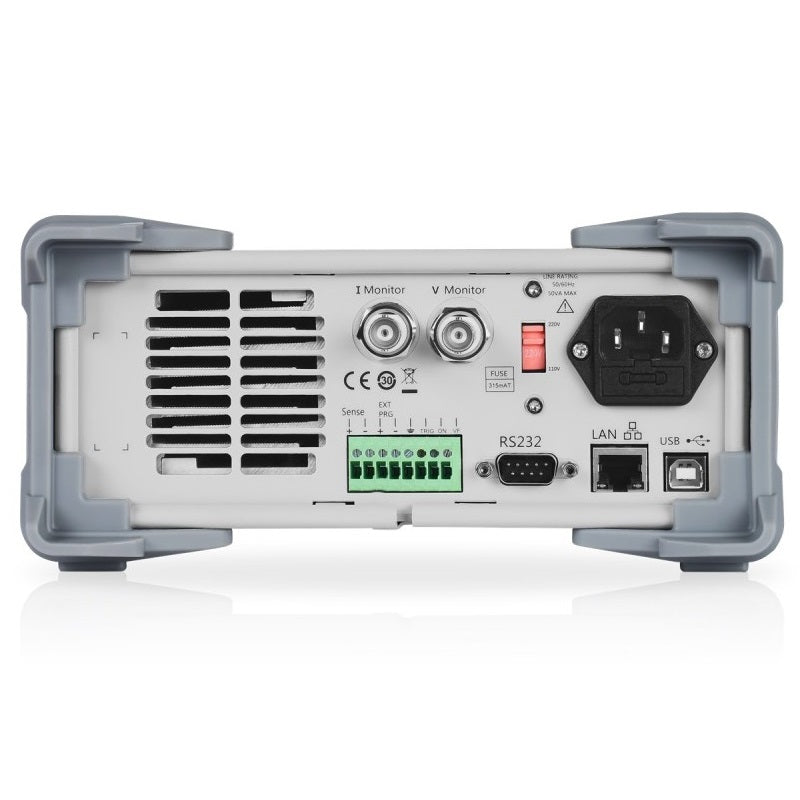

Built-in RS232/USB/LAN communication interface, USB-GPIB module
Waveform trend chart and easy-to-use file storage and call functions
Includes PC software: Supports SCPI, LabView driver

Siglent's SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5-inch TFT-LCD display, a user-friendly interface, and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150V / 3A / 200W while the SDL1030X/SDL1030X-E have an input range of 150V / 30A / 300W. The SDL1000X series leads with a measurement resolution of 0.1mV / 0.1mA and the base SDL1000X-E series resolution is 1mV / 1mA and adjustable current rise times from 0.001A/s to 2.5A/s. For remote communication and control, the SDL series includes RS232 / USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. including Power, Battery / handheld device design, Industry, LED lighting, Automotive electronics, and Aerospace.
