Siglent SDG805 5MHz, 1 Channel Function / Arbitrary Waveform Generator

Material Supply SKU #: Z-SIGLENT-SDG805-5MHZ-1-CHANNEL-1237

SAR 1,265.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

FEATURES

DDS technology, Single-channel output
125MSa/s sample rate, 14bit vertical resolution
5 types of the standard output waveform, built-in 46 arbitrary waveforms (include DC)
Complete set of modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
Abundant input/output: Waveform output, Synchronous signal output, and External trigger input
Standard interfaces: USB Device, USB Host and supplied with powerful arbitrary editing software and support remote control

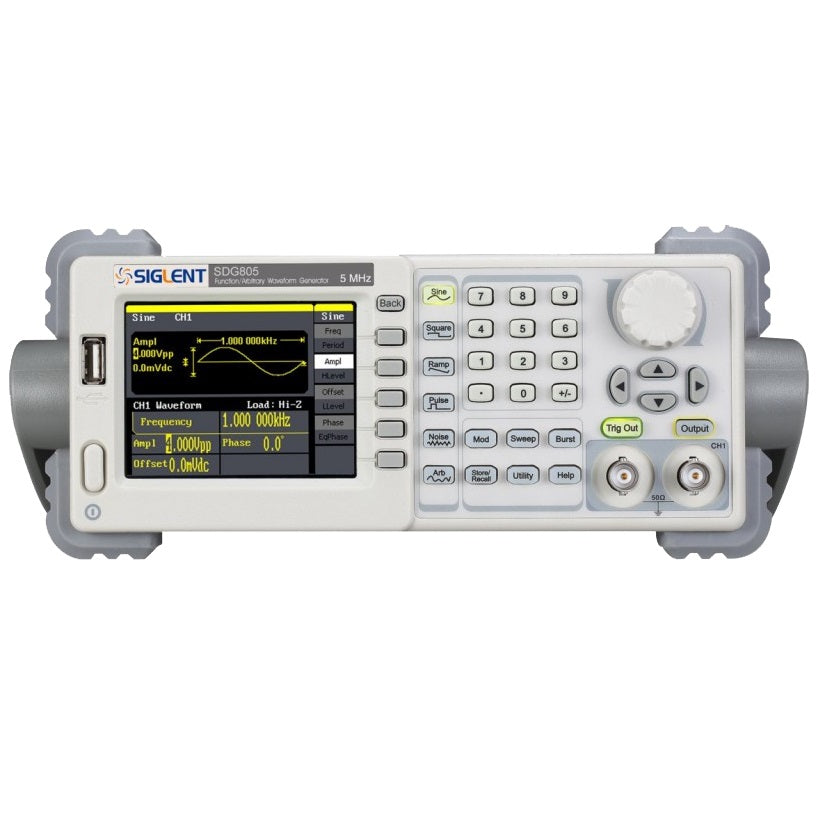

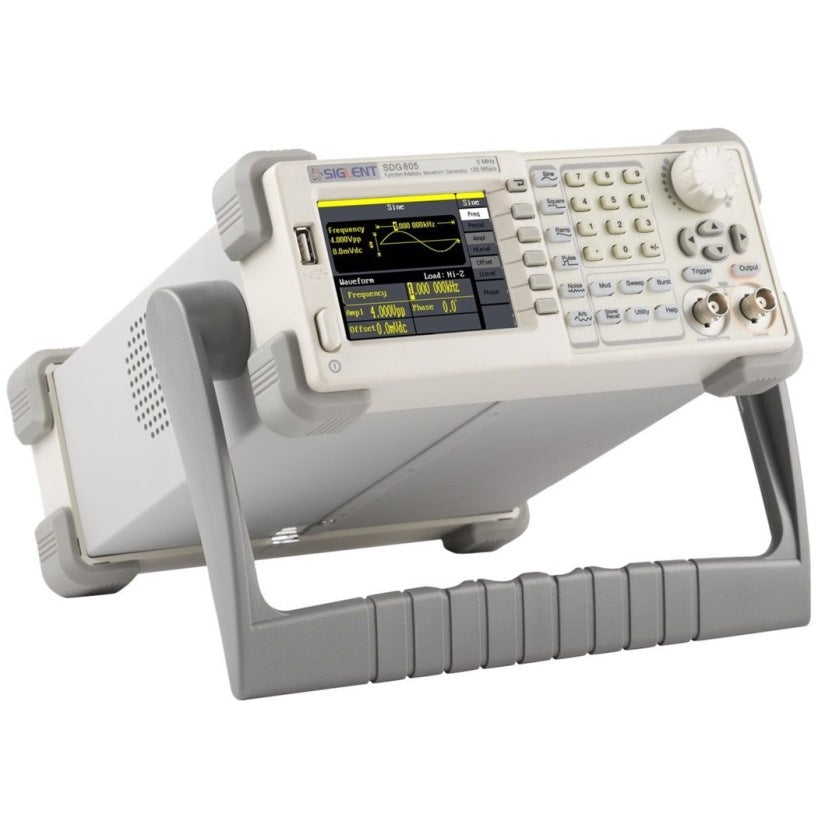

The Siglent SDG805 is a 1-channel Function / Arbitrary Waveform Generator to create high-quality signals up to 5 MHz (Sine). Besides the analogue output, the device includes a USB Host- and a USB device interface.?The Siglent function generators have a sophisticated and easy-to-use interface and offer multiple functions for all tasks. The menu navigation is very intuitive and all functions and parameters are easy to locate thanks to the graphical interface.

n n

APPLICATIONS

IC test
Analog sensor
Circuit function test
Researching and training
Simulation environment signals

Weight	5000 lbs
No specifications available.
