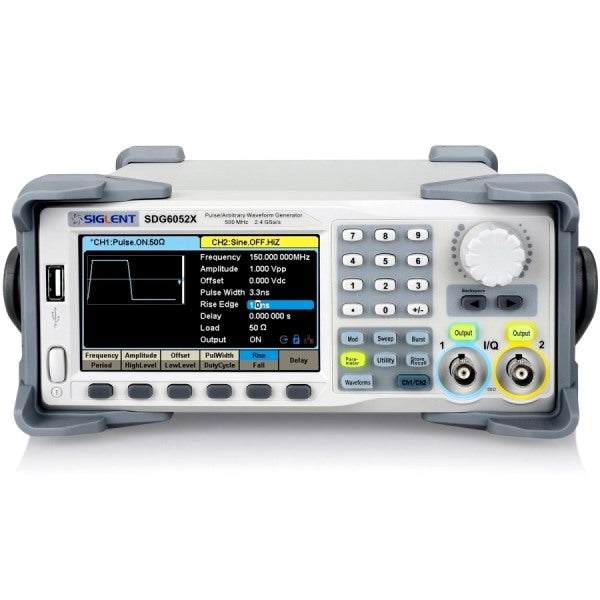

FEATURES

n
• Dual-Channel, 500MHz maximum bandwidth, 20Vpp maximum output amplitude, high fidelity output with 80dB dynamic range
n
• High-performance sampling system with 2.4GSa/s sampling rate and 16-bit vertical resolution and multi-function signal generator, meeting requirements in a wide range
n
• Continuous Wave Generator: Up to 500MHz sine wave, supporting sweep and user-defined harmonics. Low-cost replacement of RF signal generators below 500MHz
n
• Pulse Generator: Up to 150MHz Pulse, with finely adjustable width, rising edge, and falling edge; 3.3ns minimum width and 1ns minimum edge at a full frequency range
n
• Function Arbitrary Waveform Generator: Basic Function / Arbitrary Waveform Generator and complex signals generating capability including modulation, sweep, burst, and waveform combination
n
• IQ Signal Generator: Base Band and IF IQ signals supporting basic modulation and an arbitrary symbol rate between 250 Symb/s to 37.5 MSymb/s
n
• Noise Generator: Up to 500MHz bandwidth White Gaussian Noise with adjustable bandwidth
n
• PRBS Generator: Up to 300Mbps PRBS3?to PRBS32 with fine bit rate and edge adjustments
