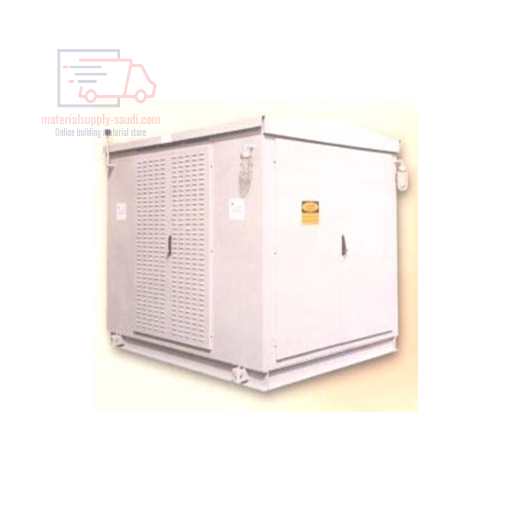

Package Transformer Substations (Compact Substations)

Package Transformer Substations (Compact Substations) – engineered to your project specification and supplied across Saudi Arabia for utilities, industrial plants, commercial buildings and infrastructure projects. Pricing depends on rating, configuration and quantity; contact us with your single-line diagram or specification for a quotation.

Technical Data & Available Versions

A.MEDIUM VOLTAGE

M.V. Compartment contains two load break switches and one automatic fused load break switch for transformer (RMU). It is available to mount min. oil or vacuum or SF6 load breakswitch.

B. TRANSFORMER COMPARTMENT

Transformer compartment is designed to enclose a 3- phase oil immersed naturally air-cooled transformer specially designed for substation. Transformer is connected to L.V. distribution board through copper bus bars. The necessary openings are provided, by which air entry is assured, so that temperature is kept to a minimum.

C.  LOW VOLTAGE COMPARTMENT

L.V. compartment contain the L.V. distribution board. The incoming and outgoing feeders are available providing with either molded case circuit breakers or high rupturing capacity fuses. The incoming unit is equipped with voltmeter and selector switch, 3 ammeters with current transformers, signal lamps and space for optional K.W.H. meter

Request a quote: send us your specification for pricing and delivery.
