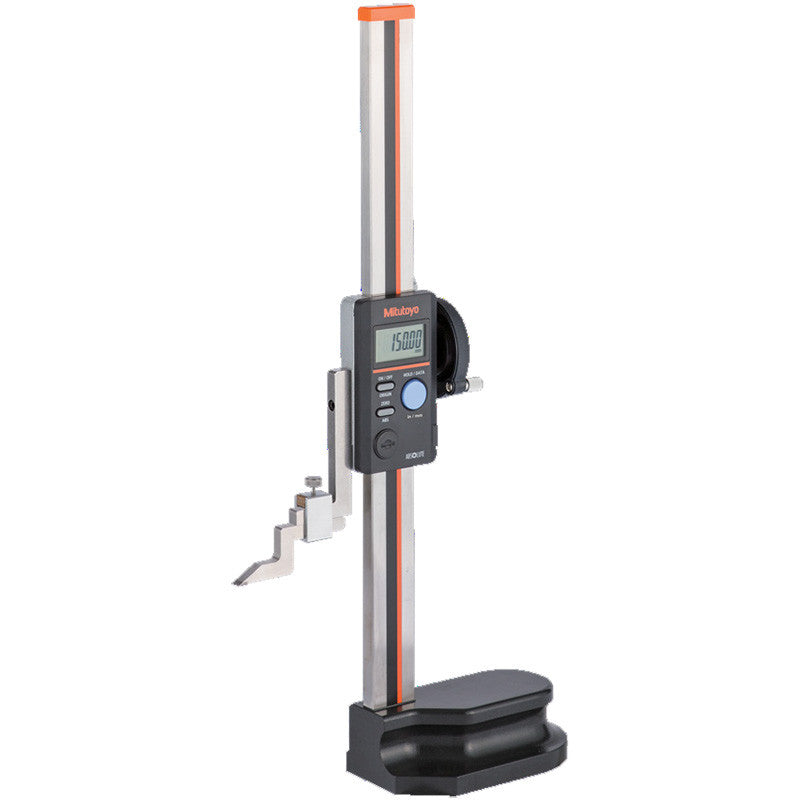

Mitutoyo 570-414 Absolute Digimatic Height Gauge, Range 0-24″/0-600mm

Price : On Request

FUNCTIONS

  • ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion
  • Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Battery Life: Approximately 20,000 hours with continuous use, five years under normal use

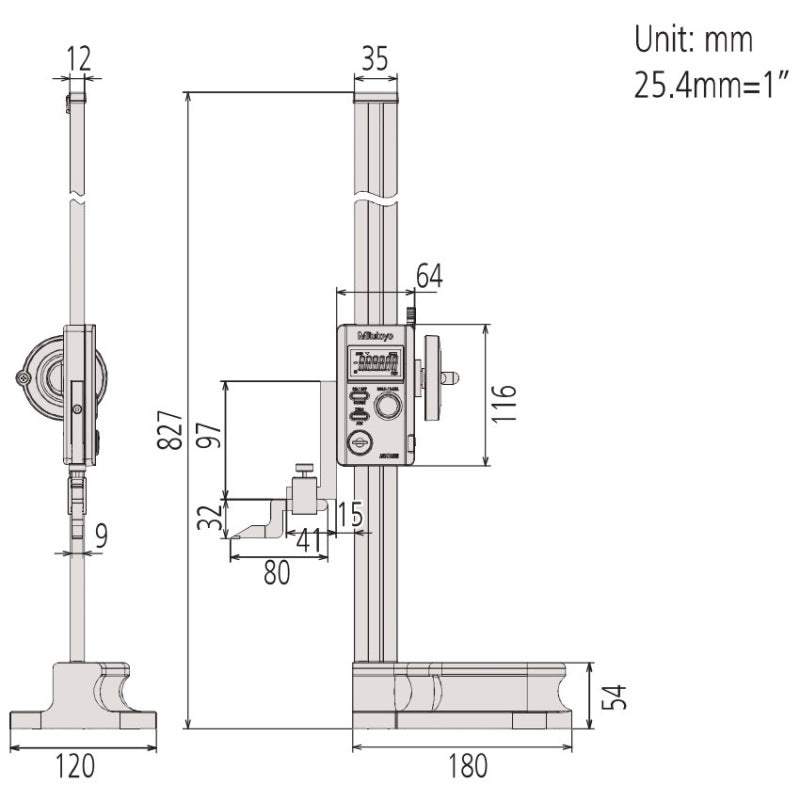

  • Dimensions: 7.09 x 4.72 x 32.56″ (180 x 120 x 827mm)
  • Weight: 6.4kg (14.1lbs)
Category: Tag:
FacebookPinterestRedditDeliciousWhatsappEmail

Mitutoyo 570-414 absolute digimatic height gauge is very precise and reliable, and offers you the following benefits:
Its built-in ABSOLUTE linear encoder means you don’t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
It comes with a large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided
A large display and buttons for easy operability

SPECIFICATIONS

Measuring Range: 0-24″/0-600mm
Resolution: 0.0005″/0.01mm
Maximum Permissible Error EMPE: 0.002″/ 0.05mm
Drive Method: Slider-feed wheel (manual)
Digital/Analog: Digital
Unit: Inch/metric
Display: LCD
SPC Output: Yes

Additional information

Weight 8000 kg
