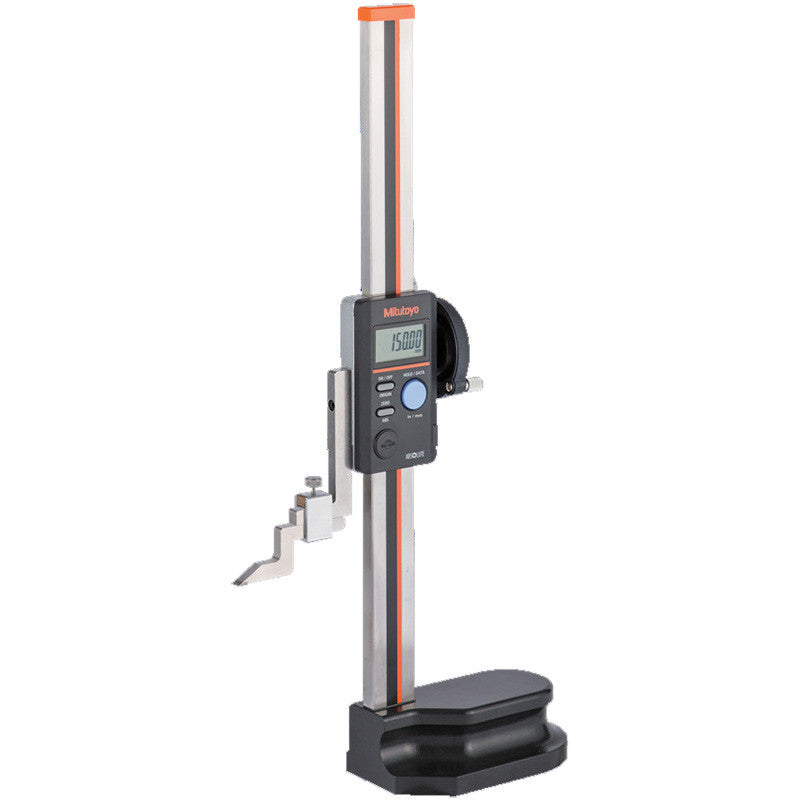

Mitutoyo 570-412 Absolute Digimatic Height Gauge, Range 0-12″/0-300mm

Price : On Request

  • Its built-in ABSOLUTE linear encoder means you don’t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
  • It comes with a large and smooth-acting slider hand wheel
  • A carbide-tipped scriber is provided
  • A large display and buttons for easy operability
Category: Tag:
FacebookPinterestRedditDeliciousWhatsappEmail

Mitutoyo 570-412 absolute digi matic height gauge is very precise and reliable, and offers you the following benefits:

SPECIFICATIONS

Measuring Range: 0-12″/0-300mm
Resolution: 0.0005″/0.01mm
Maximum Permissible Error EMPE: 0.0015″/?0.03mm
Drive Method: Slider-feed wheel (manual)
Digital/Analog: Digital
Unit: Inch/metric
Display: LCD
SPC Output: Yes
Functions: ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion
Length Standard: ABSOLUTE electrostatic capacitance type linear encoder
Battery Life: Approximately 20,000 hours with continuous use, five years under normal use

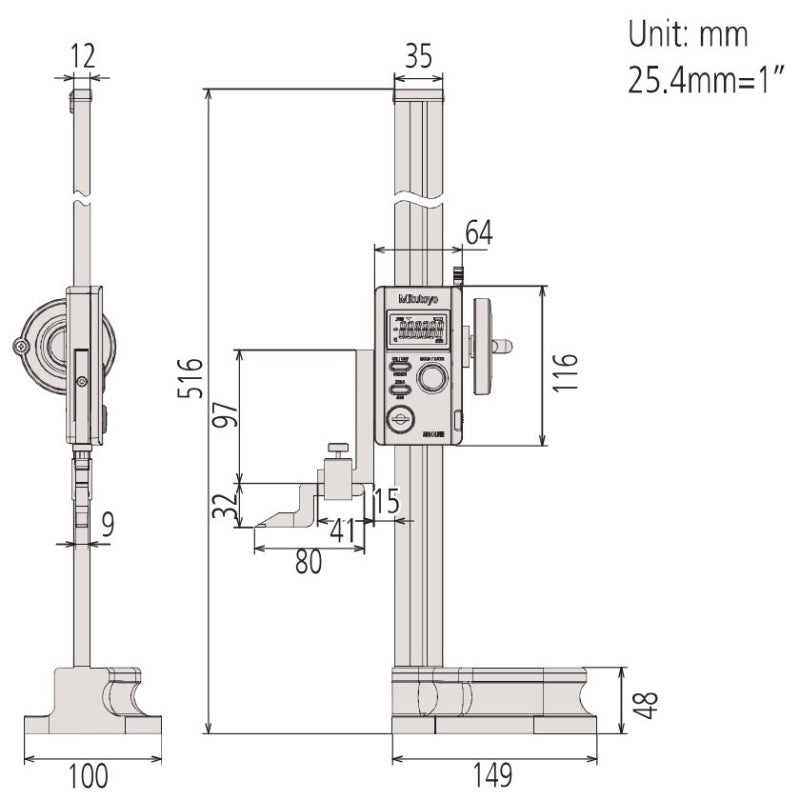

Dimensions: 5.87 x 3.94 x 20.31″ (149 x 100 x 516mm)
Weight: 4.6kg (10.14lbs)

Additional information

Weight 6000 kg
