Built-in Absolute linear encoder This encoder eliminates the necessity of setting the reference point at every power on.
n
It has improved reliability because overspeed errors cannot occur
n
Fine adjustment for precise positioning
n
Carbide-tipped scriber is provided
n
SPC data output
n

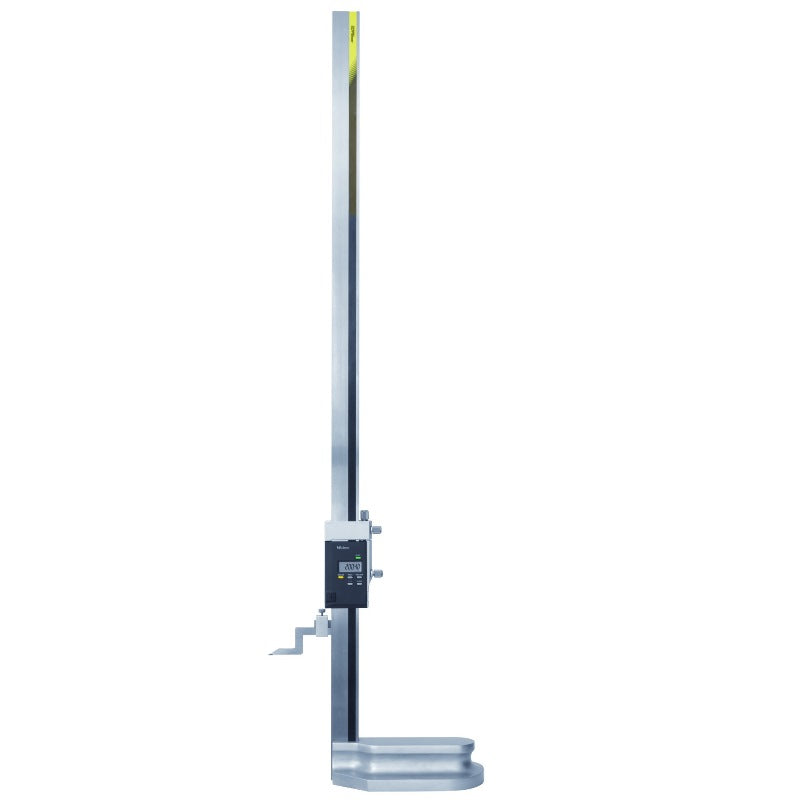

Mitutoyo 570-248 Absolute Digimatic Height Gauge has a measurement range of 0-40"/0-1000mm, a high-contrast LCD digital readout precise to 0.0005/0.01mm, with + or - 0.003/0.07mm of accuracy, and data output to transmit results to a Mitutoyo mini processor or computer for statistical process control (SPC). This height gauge has an electronic microprocessor providing the ability to preset a reference height at any position, as well as set a temporary zero position and return to a true zero reading. The LCD display is selectable to display either inch or metric units. The output port transmits results to a Mitutoyo mini processor or computer through an interface cable (not included) for statistical process control (SPC). An electrostatic capacitance linear encoder helps prevents overspeed errors to help ensure repeatable, precise measurement. The scriber, used to mark a position on a workpiece, is 25mm x 47mm (H x W), carbide-tipped for hardness and to help prolong life, and is held to the gauge by a screw clamp for fastening ease. A calibrated screw mechanism supports fine, uniform slider adjustments. The grip base helps hold the unit in position by hand. The height gauge weighs 16.8kg/37.04 lbs. The unit comes with an SR44 battery.
