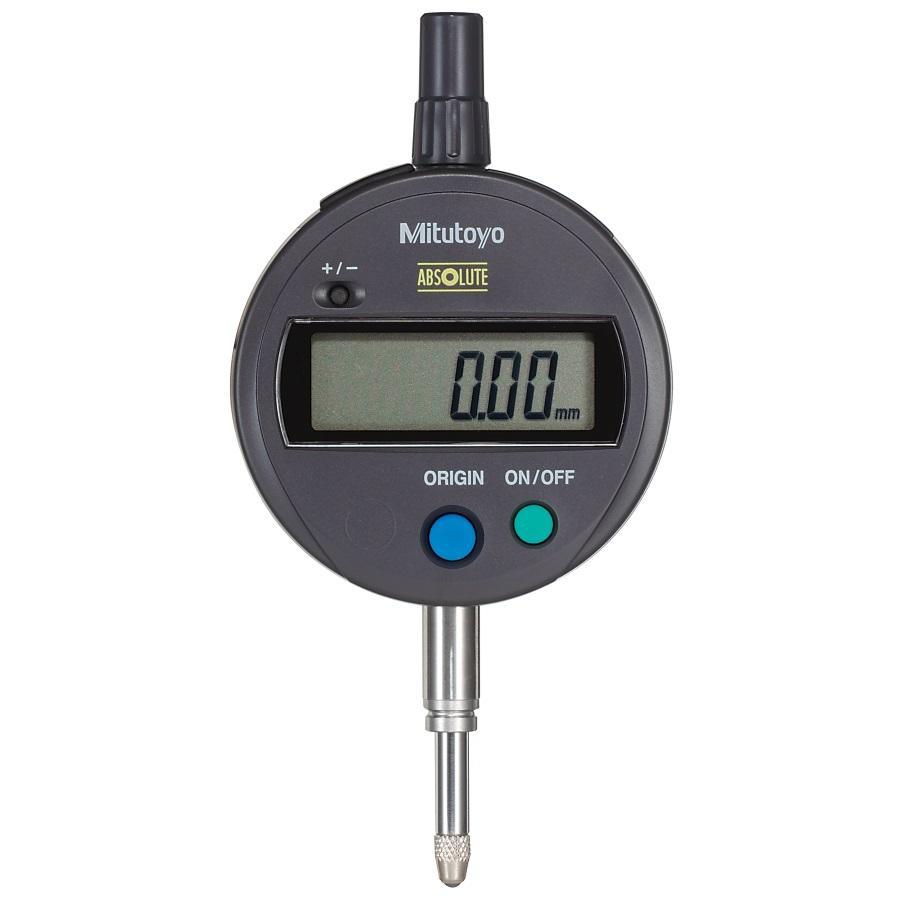

The Mitutoyo 543-781 ID-S ABSOLUTE Digimatic Indicator with Simple Design has the following specifications:
Model: ID-S1012X
Range: 0-12.7mm
Resolution: 0.01mm
Accuracy: .02mm
Stem/Shank: 8mm
Contact Point: M2.5x 0.45 Thread
Measuring force: 1.5N or less
Type: ISO/JIS
Type: Lug Back
Features:
After the initial zero-setting with the ORIGIN button, the repeated absolute positioning is no longer necessary over the entire battery life.
Unlimited response speed eliminates over-speed errors.
SPC data output.
Similar in size to standard Series 2 dial indicators
Any part number followed with a “B” means that model has a flat back (no lug)
Technical Data:
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: Refer to the list of specifications
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours under normal use
Functions:
Origin-set
Zeroset
Counting direction switching
Power ON/OFF
Data output,inch/mm conversion (on inch/metric models only)
Alarm: Low voltage
Counting value composition error
Over-flow error
