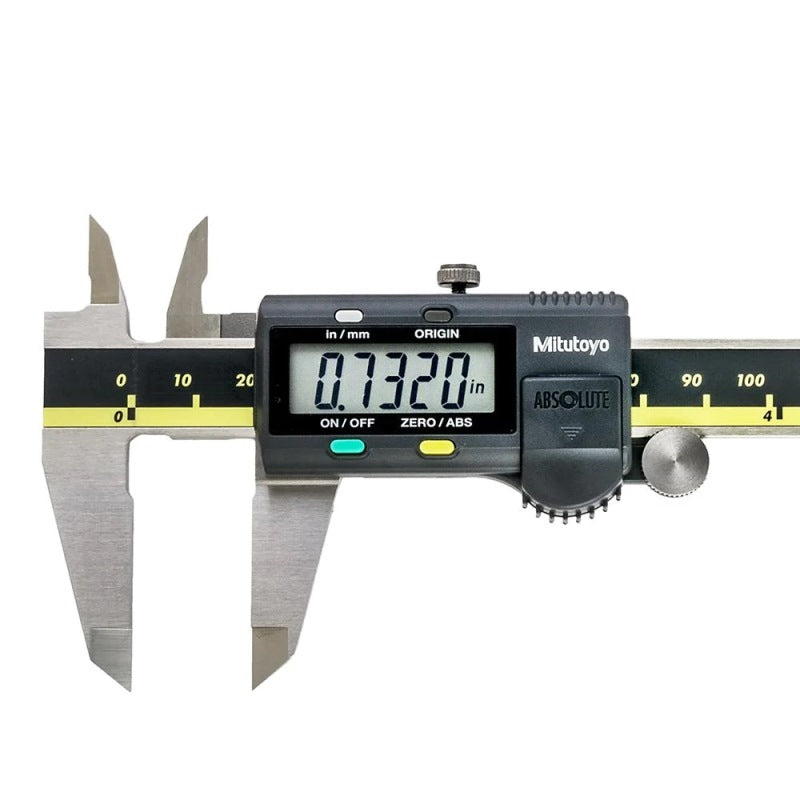

Mitutoyo 500-172-30 Digimatic Caliper With SPC Output, Range 0-8 Inch/200mm

Material Supply SKU #: Z-MITUTOYO-500-172-30-DIGIMATIC-1300

SAR 1,160.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

FEATURES

Available in Metric and Inch/Metric models
Available with or without SPC output capabilities
Thumb roller included only on calipers up to and including 12-inch/300mm models
Stainless steel construction protects caliper components and ensures accurate performance for a longer duration
Functions include Origin Set, Zero-Setting, Data Output, and inch/mm conversion (on inch/metric models only)
Carbide-tipped jaws are available and supplied in a fitted plastic case (40 inch/1000mm model is supplied in a wooden case)
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on, overspeed errors are also eliminated

The Mitutoyo's absolute Digimatic Caliper is the next generation of electronic calipers. The caliper keeps track of the origin point once it is set.? When turned on, the large LCD displays the actual slider position and is ready to be measured With the absolute encoder technology, there is no need for users to have to set zero on the caliper continually. With the new Mitutoyo absolute digimatic calipers, there is no more concern for over-speed errors as some have seen with lesser quality electronic calipers. The high-quality guide surface finish ensures smooth slider movement along the scale.

n n

TECHNICAL DATA

Range: 0-8 inch/200mm
Accuracy: +/- 0.001 inch
Resolution: 0.0005 inch/0.01mm
Repeatability: 0.0005 inch/0.01mm
SPC Output: Yes

Weight	2000 lbs
No specifications available.
