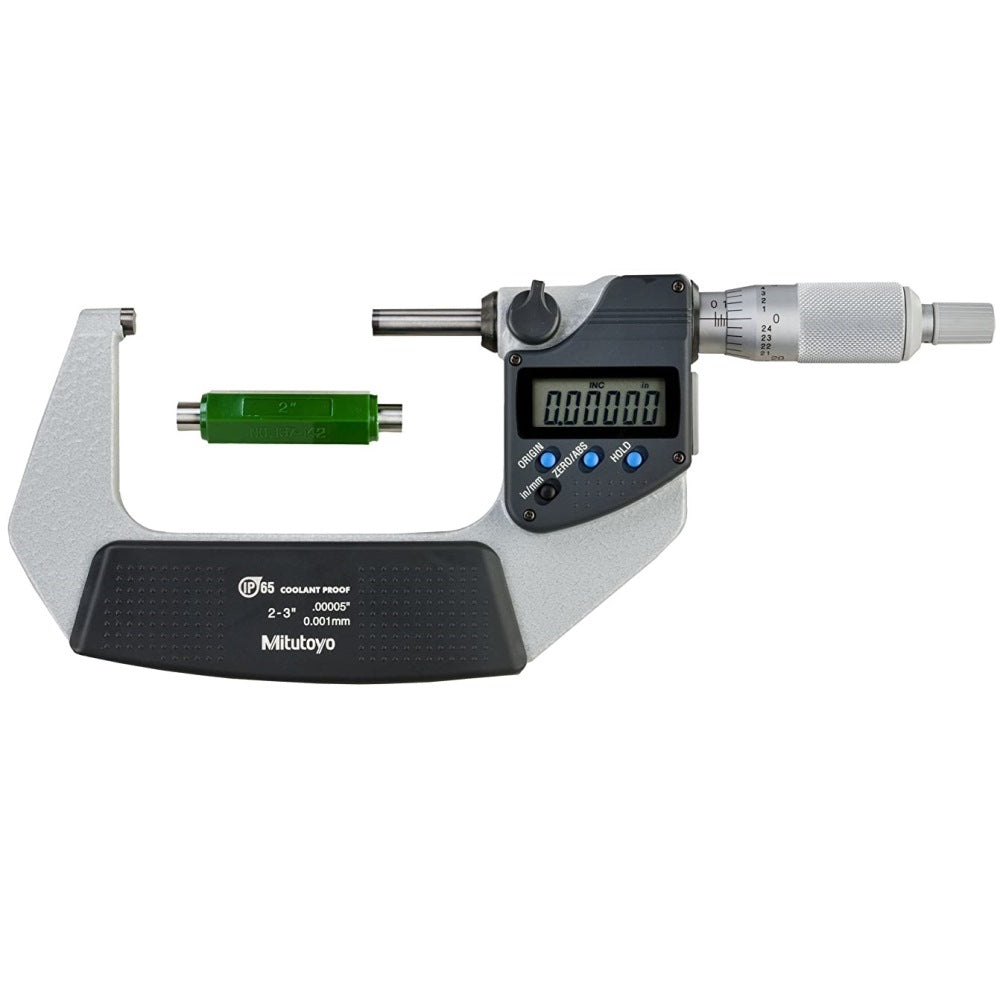

Mitutoyo 293-342-30 Micrometer, Range 2-3″/ 50-76mm IP65 Ratchet Stop-No SPC

Price : On Request

Mitutoyo new model 293-342-30 Digimatic micrometer features the NEW electromagnetic ABSOLUTE sensor, improving resistance to environmental conditions such as dirt, oil and water that can cause false readings. It has a measuring range of 2-3″/ 50-76mm with Inch/Metric conversion and a Ratchet Stop. This Series features IP65 level of protection, enabling use in environments exposed to cutting oil, etc., a Zero-set key for easy origin setting, Carbide tipped measuring faces and comes in a fitted plastic case. Also includes Automatic power on/off feature and data hold as well as low voltage and counting value composition error alarms. No SPC output



Category:
FacebookPinterestRedditDeliciousWhatsappEmail

Specification:
Range: 2-3″/50.8-76.2mm
Resolution: 0.00005″/0.001mm
Accuracy: +/- 0.00005″
SPC Output: No
Ratchet Stop
Flatness: 0.000012″/0.0003mm
Parallelism: 0.00008″/0.002mm for models up to 4″/100mm
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44
Battery life: Approx. 1.2 years under normal use (8 months: over 100mm models)
Dust/Water protection level: IP65

Additional information

Weight 1000 kg
