Mitutoyo 137-201 Tubular Inside Micrometer, 50-150mm

Price : On Request

The Mitutoyo 137-201 Extension Rod Tubular Inside Micrometer – Metric has the following specifications:

  •  Range: 50 – 150mm
  •  Travel of micrometer head: 13mm
  •  Accuracy: +/-(3+n+L/50)?m L=Maximum measuring length (mm) n=Number of rods Fraction rounded up
  •  Graduation: 0.01mm or .001″

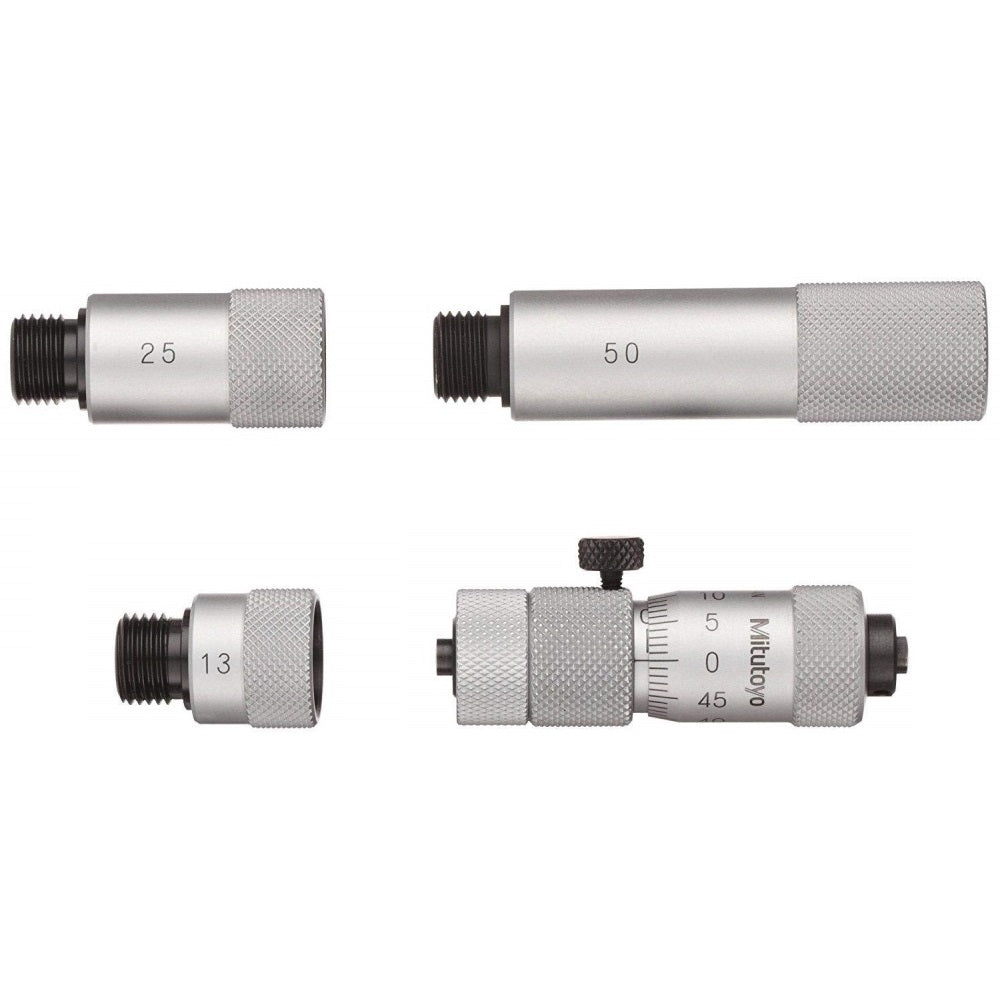

  •  Extension rods: 13mm, 25mm, 50mm
Category:
FacebookPinterestRedditDeliciousWhatsappEmail

Features:
Wide range of ID measurements by combining extension rods (pipes) and anvils with the micrometer head.
Carbide-tipped measuring faces are available.

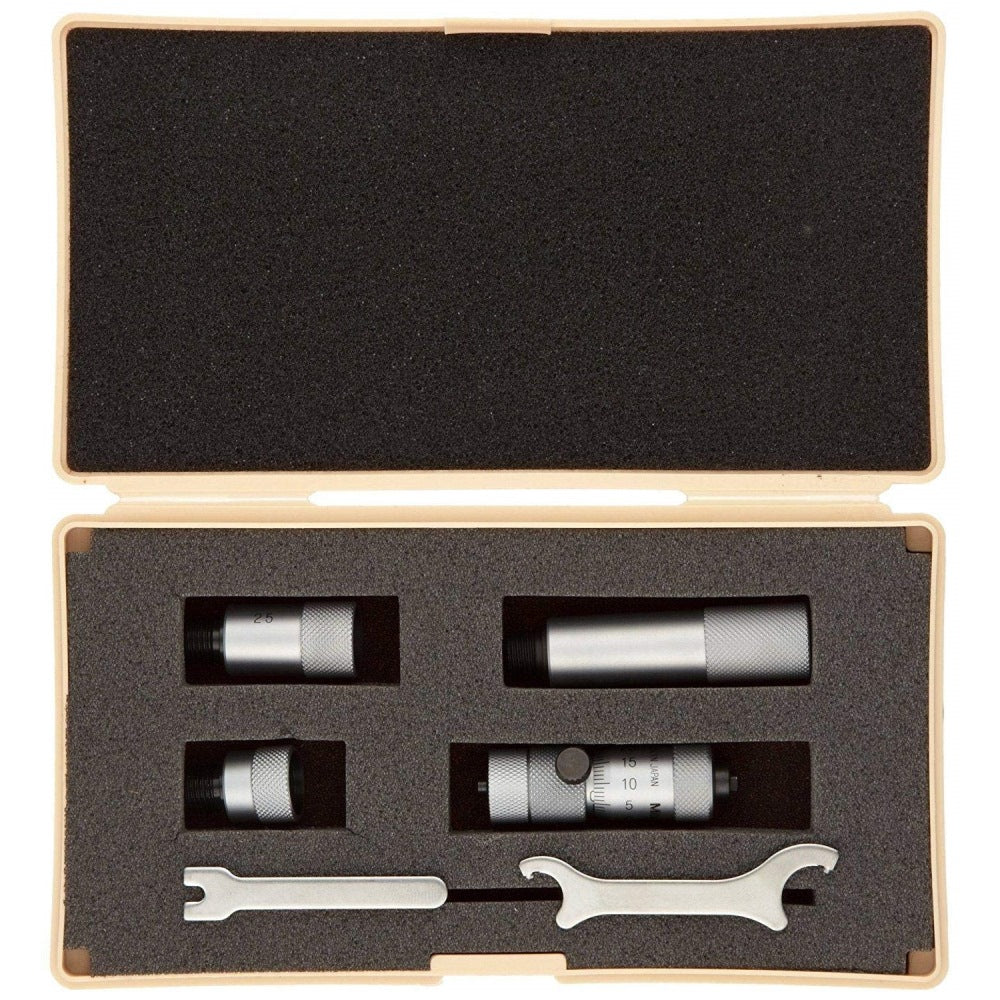

Supplied in fitted plastic case except 1500mm / 60″ come in wooden case.

Additional information

Weight 1000 kg
