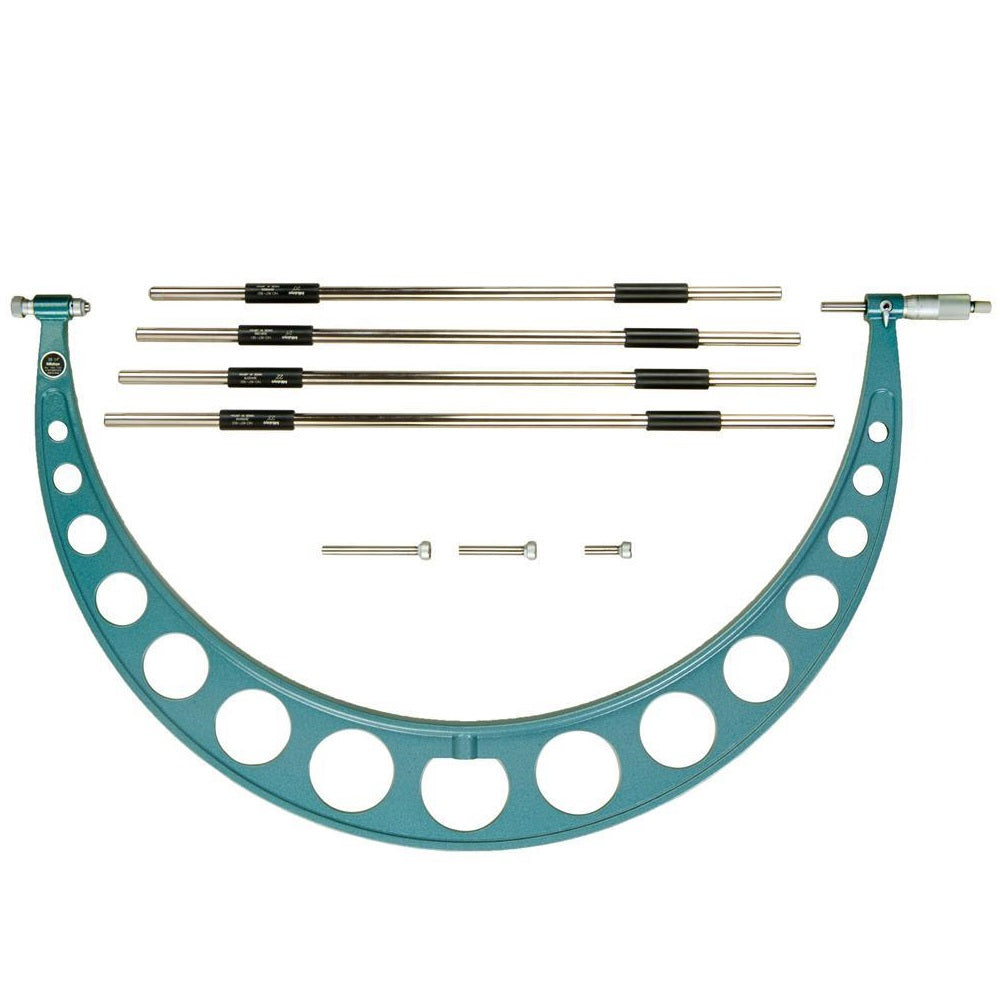

Mitutoyo 104-154 Outside Micrometer With Interchangeable Anvils, Range 20-24″

Price : On Request

Mitutoyo 104-154 Outside Micrometer with?4 Interchangeable Anvils

  • Wide measuring range with interchangeable anvils.
  • With a Ratchet Stop for constant force.
  • Supplied with zero-setting standards bar for each range.
  • Supplied in fitted wooden case.
  • Measuring faces: Carbide tipped
Category:
FacebookPinterestRedditDeliciousWhatsappEmail

Specification
Range: 20-24″
Graduations: 0.001″
Mass(kg): 6.35
Remarks: With 4 Anvils & 4 Standards
With Ratchet Stop

Technical Data
Accuracy: +/- [.00016″ +/- .00004 (L/3)”] L = Max Range (Inch)
Graduation: 0.001″ or 0.0001″ (0-2″)
Flatness:
0.000024″ for models up to 12″
0.00004″ for models over 12″
Parallelism:
0.00008″ for models up to 3″
0.00012″ for models up to 6″
[0.00008″ + 0.00004 (L/4)”] L= Max range (inch)

Additional information

Weight 5000 kg
