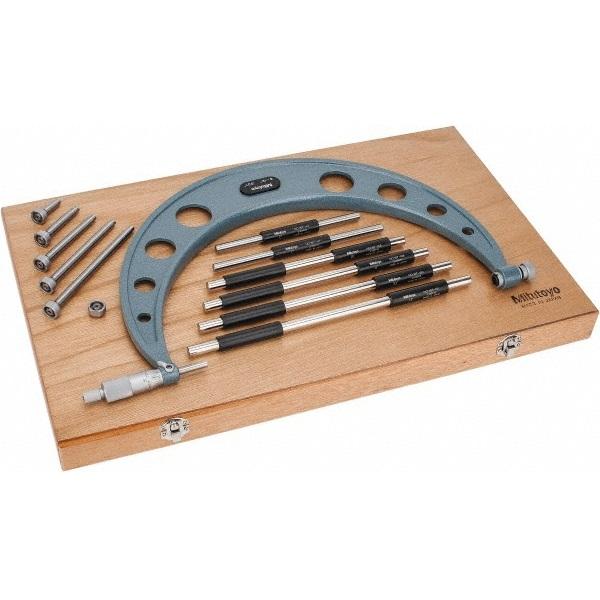

Mitutoyo 104-136A Outside Micrometer, Range 150-300mm

Price : On Request

The Mitutoyo 104-136A Outside Micrometer with Interchangeable Anvils is a high-quality, durable product used to measure the thickness or the outside diameter of various tools. This product comes with interchangeable anvils for your convenience and encompasses a carbide tip. It is easy to store, use and carry around. The micrometer with interchangeable anvil has a Thimble and sleeve satin chrome finish measuring18 mm. The micrometer consists of a carbide tip and micro-lap spindle.

Category:
FacebookPinterestRedditDeliciousWhatsappEmail

SPECIFICATIONS

Range: 150-300mm
Accuracy: +/-(4+R/75)
Graduation: 0.01mm
Resolution: 0.01mm
Anvils: 6 Anvils and?6 Standards
Interchangeable Anvils: 0, 25, 50, 75, 100, 125mm
Measuring faces: Carbide tipped (spindle only)
Type: Metric
Weight: 2.65kg

FEATURES

Comes with a Ratchet Stop for constant force
Wide measuring range with interchangeable anvils
Supplied with zero-setting standards bar for each range
IP65 water/dust protection 340 series models with a range up to 12in / 300mm
Measuring surfaces: Hardened, lapped (anvil), carbide tipped, lapped (spindle side)

Additional information

Weight 3000 kg
