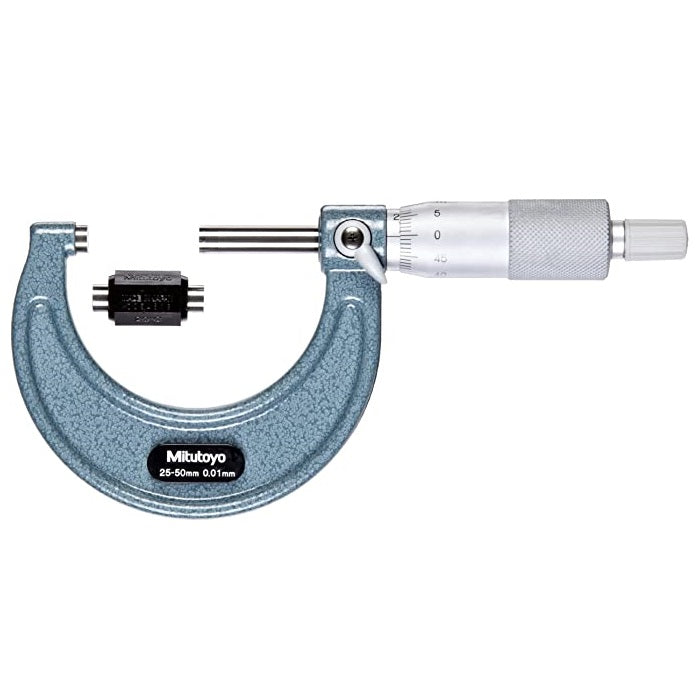

Mitutoyo 103-130 Outside Micrometer, Range 25-50mm

Price : On Request

FEATURES

  • Comes with standard bar except for 25-50mm
  • Scale is laser etched on the thimble and sleeve
  • Speeder is always available for quick rotation of the spindle
  • Frame has a hammer-tone baked enamel finish for durability and is supplied in a fitted plastic case
  • Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Category:
FacebookPinterestRedditDeliciousWhatsappEmail

The?Mitutoyo 103 series?features either a ratchet stop or friction thimble that applies constant measuring force on a workpiece for exact repetitive readings. Available in metric and inches. The Mitutoyo outside micrometer is ideal for measuring metal and non-metal workpieces. A ratchet-stop mechanism on the?103-130?provides uniform pressure on a workpiece for precise, repeatable measurements. The friction thimble models allow for constant-force measurement for single-handed operation.

TECHNICAL DATA

Range: 25-50mm
Graduations: 0.001mm
Accuracy: +/- 2um
Weight: 215g

Additional information

Weight 500 kg
