Type: L
Display unit (mm/inch): mm + inch

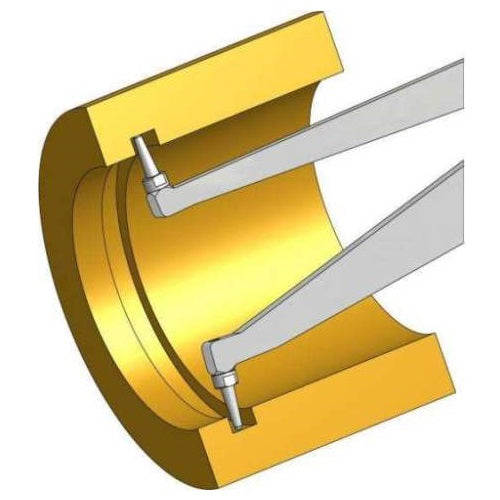

Application: Internal measurement

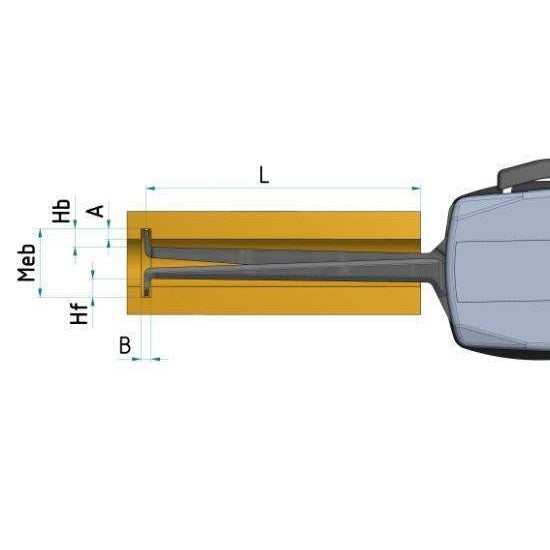

Measuring span Mes: 30 mm
Measuring range Meb: 30-60 mm
Range of indication Azb: 29.5-60.5 mm
Numerical interval Zw: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm
Maximun permissible errors G: 0.04 mm
Repeatability limit r: 0.02 mm
Measuring force F minimum: 1.2 N
Measuring force F maximum: 1.7 N
Type of measuring contact movable: HM-Ball 1.5 mm
Measuring contact movable Hb: 6.5 mm
Type of measuring contact fixed: HM-Ball ؠ1.5 mm
Measuring contact fixed Hf: 6.5 mm
Measuring contact thickness maximum: 2.5 mm
Measuring depth maximum L: 132 mm
Weight: 370 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67

OPTIONAL ACCESSORIES

Interface Bluetooth: Order no. 1961-13
Wooden box: Order no. 1732-71
Holding unit: Order no. 8007-10
