Type: L
Display unit (mm/inch): mm + inch
Application: External measurement

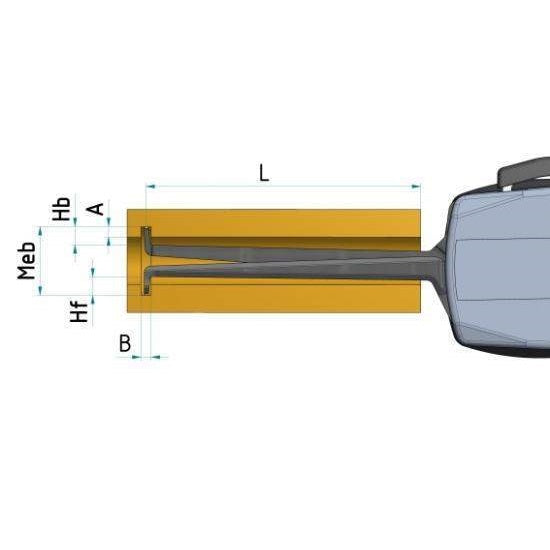

Measuring span Mes: 0.8 inch
Measuring range Meb: 1.97-2.76 inch
Range of indication Azb: 1.9490-2.7755 inch
Numerical interval Zw: 0.00005 / 0.0001 / 0.0002 / 0.0005 / 0.001 / 0.002 inch
Maximum permissible errors G: 0.0015 inch
Repeatability limit r: 0.0005 inch
Measuring force F minimum: 1.1 N
Measuring force F maximum: 1.6 N
Type of measuring contact movable: HM-Ball ؠ0.04 inch
Measuring contact movable Hb: 0.33 inch
Type of measuring contact fixed: HM-Ball ؠ0.04 inch
Measuring contact fixed Hf: 0.33 inch
Measuring contact thickness maximum: 0.10 inch
Measuring depth maximum L: 3.3 inch
Weight: 285 g
Reference temperature: 20 °C
Operating temperature: 10° to 30 °C
Storage temperature: -10° to 50 °C
Protection class: IP67
OPTIONAL ACCESSORIES

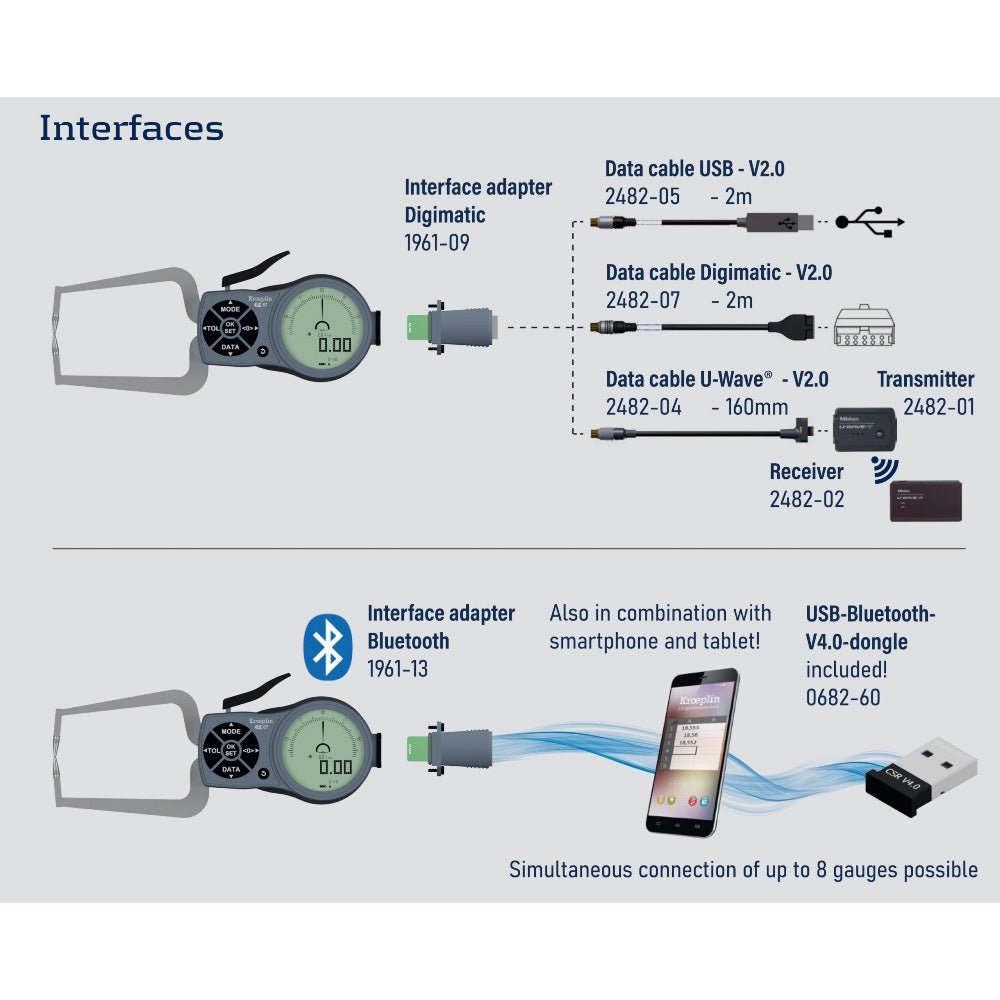

Interface bluetooth: Order no. 1961-13
Wooden box: Order no. 1732-65
Holding unit: Order no. 8007-10
