Type: H
Display unit (mm/inch): mm

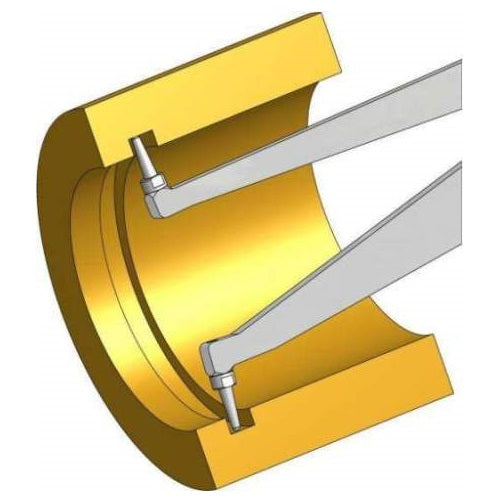

Application: Internal measurement

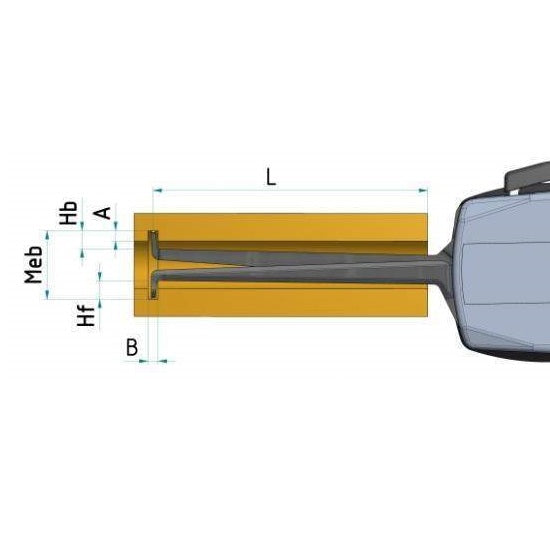

Measuring span Mes: 20 mm
Measuring range Meb: 50-70 mm
Range of indication Azb: 49.5-70.5 mm
Scale interval Skw: 0.01 mm
Maximum permissible errors G: 0.03 mm
Repeatability limit r: 0.01 mm
Measuring force F minimum: 1.1 N
Measuring force F maximum: 1.6 N
Type of measuring contact movable: HM-Ball 1.0 mm
Measuring contact movable Hb: 8.5 mm
Type of measuring contact fixed: HM-Ball 1.0 mm
Measuring contact fixed Hf: 8.5 mm
Measuring contact thickness maximum: 2.6 mm
Measuring depth maximum L: 85 mm
Weight: 195 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP65

OPTIONAL ACCESSORIES

Wooden box: Order no. 1732-45
Holding unit: Order no. 8004-50
