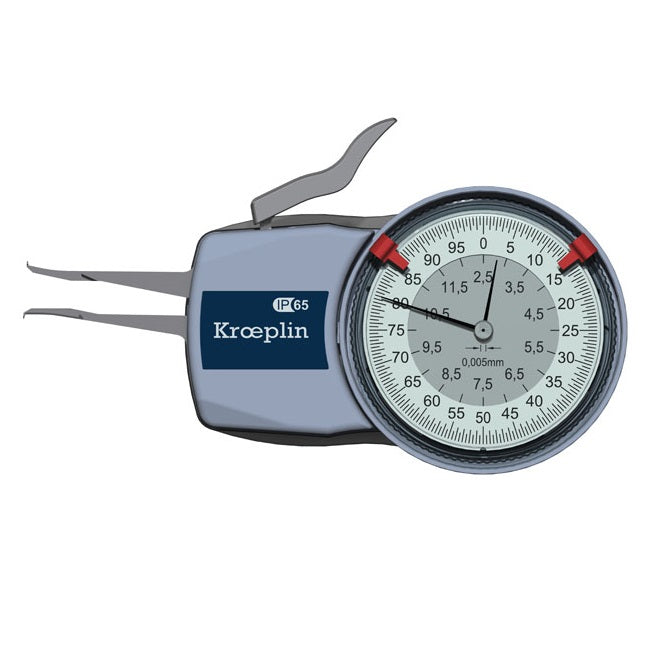

Type: H
Display unit (mm/inch): mm

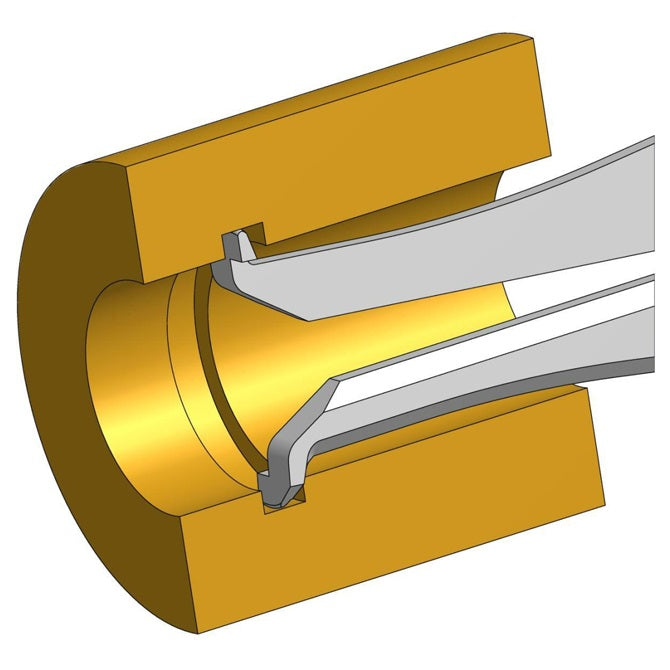

Application: Internal measurement
Measuring span Mes: 10 mm
Measuring range Meb: 2.5-12.5 mm
Range of indication Azb: 2.4-12.8 mm
Scale interval Skw: 0.005 mm
Maximum permissible errors G: 0.015 mm
Repeatability limit r: 0.005 mm
Measuring force F minimum: 0.8 N
Measuring force F maximum: 1.2 N
Type of measuring contact movable: Chisel R 0.1 mm

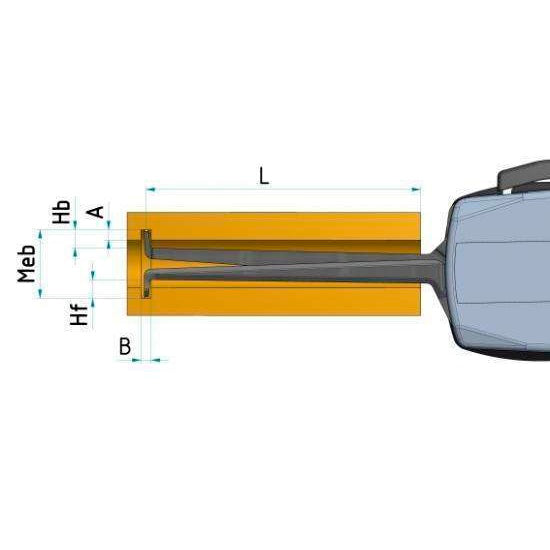

Measuring contact movable Hb: 0.9 mm
Type of measuring contact fixed: Chisel R 0.1 mm
Measuring contact fixed Hf: 0.9 mm
Measuring contact thickness maximum 0.5 mm
Measuring depth maximum L: 12 mm
Weight: 155 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP65
OPTIONAL ACCESSORIES
Wooden box: Order no. 1732-45
Holding unit: Order no. 8004-50
