Type: G
Display unit (mm/inch): mm + inch
Application: Internal measurement

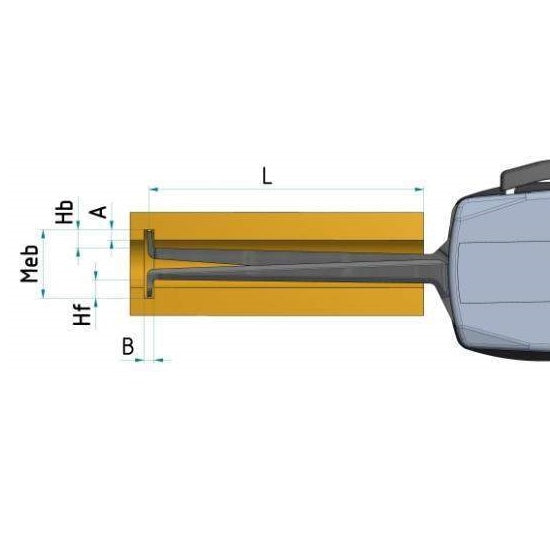

Measuring span Mes: 15 mm
Measuring range Meb: 5-20 mm
Range of indication Azb: 4.7-20.5 mm
Numerical interval Zw: 0.001 / 0.002 / 0.005 / 0.01 mm
Maximum permissible errors G: 0.01 mm
Repeatability limit r: 0.005 mm
Measuring force F minimum: 0.8 N
Measuring force F maximum: 1.3 N
Type of measuring contact movable: HM-Kugel 0.6 mm
Measuring contact movable Hb: 2.2 mm
Type of measuring contact fixed: HM-Ball 0.6 mm
Measuring contact fixed Hf: 2.2 mm
Measuring contact thickness maximum: 0.8 mm
Measuring depth maximum L: 44 mm
Weight: 160 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67

OPTIONAL ACCESSORIES

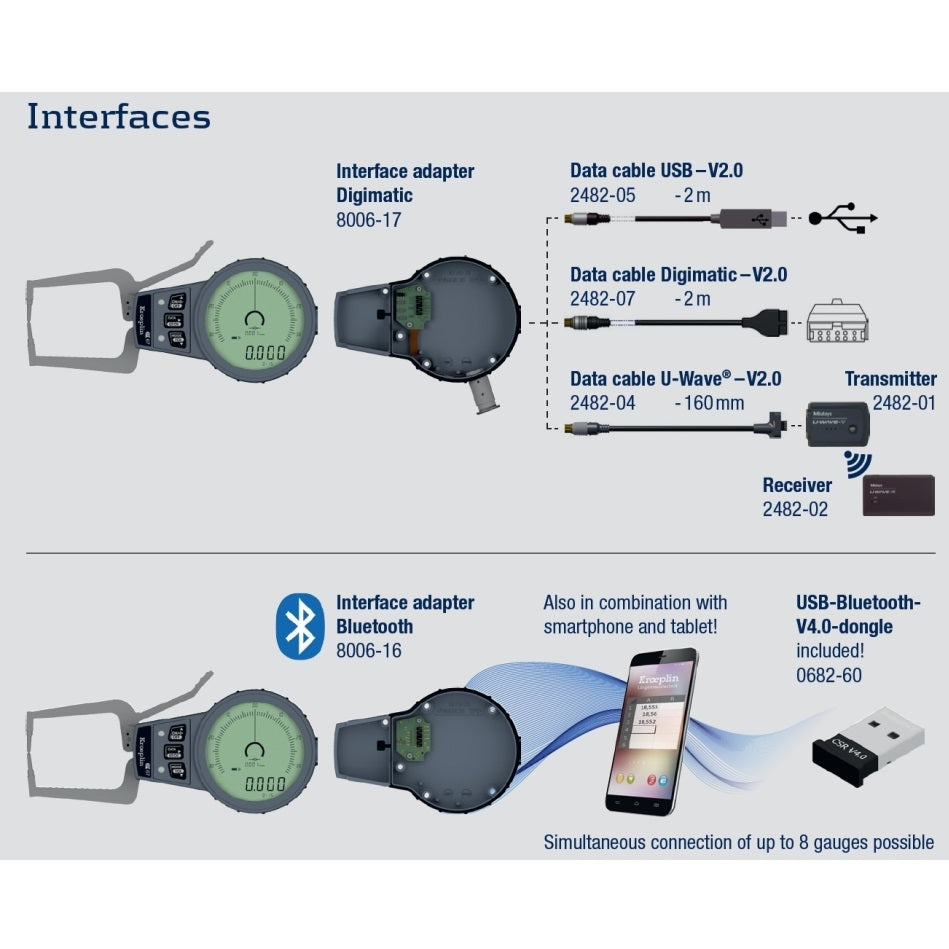

Interface Bluetooth: Order no. 8006-16
Wooden box: Order no. 1732-38
Holding unit: Order no. 8004-58
