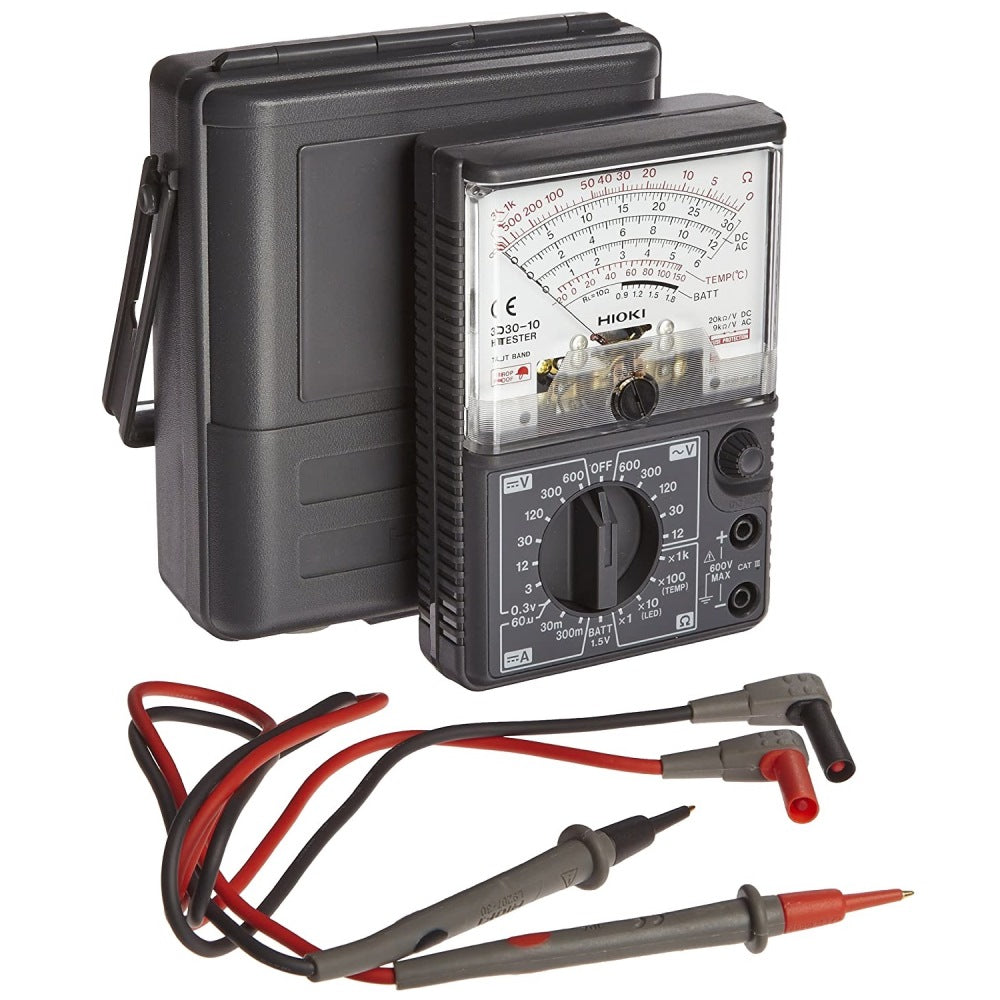

Hioki 3030-10 Analog Multimeter

Material Supply SKU #: Z-HIOKI-3030-10-ANALOG-MULTIMETE-1279

SAR 304.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

FEATURES

Accuracy: +/- 2.5 %f.s. and maximum rated voltage: 600V
0 / 120 / 300 / 600V (9 k-ohm/V) Accuracy: +/- 2.5 %f.s.
AC Voltage range 12V (9 k-ohm/V) Accuracy: +/- 4 %f.s.
Average rectifier effective value maximum rated voltage: 600V
DC Current range 60A / 30m / 300mA (300mV internal voltage drop)
DC Voltage range 0.3V (16.7 k-ohm/V), 3 / 12 / 30 / 120 / 300 / 600V (20 k-ohm/V)
Drop-proof design withstands dropping onto a concrete floor from a height of 1 meter
LED check, Battery check, or Temperature measurement support (with optional probes)

Rugged and easy to use, this meter can withstand a 1-meter drop onto a concrete floor. The 3030-10 has enhanced safety features and complies with a wide range of safety standards. Hioki has long experience in the analog tester market, and now brings to it enhanced safety and usability. Protected against transient voltages up to 250V AC, preventing electric shock accidents before they can happen. The internal circuit protects the resistance and milli-amp ranges against transient voltages up to 250V AC, preventing electric shock accidents before they can happen. Even in the event of an internal short-circuit, a current-limiting resistor is provided, to restrict short circuit currents.

Weight	500 lbs
No specifications available.
