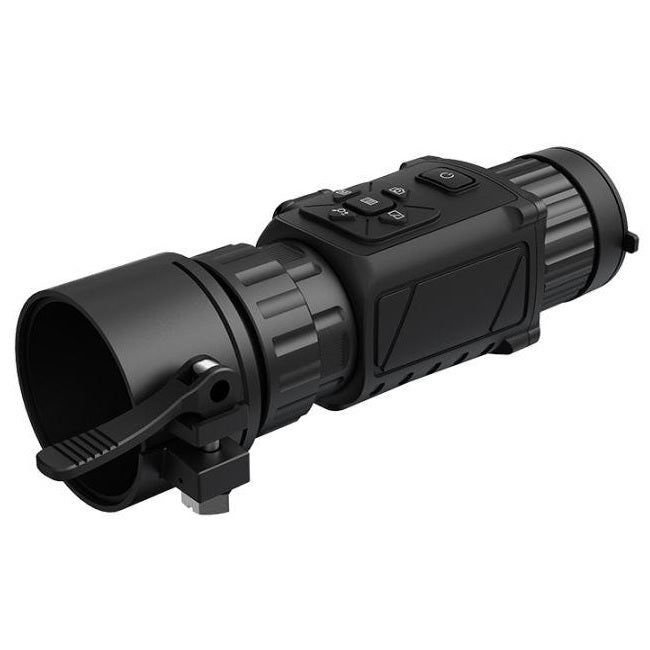

HIKMICRO Thunder Pro TQ50C Thermal Image Scope

Price : On Request

FEATURES

  • 640 x 512 thermal resolution, high sensitivity detector, and NETD <35mK (25°C, F# = 1.0)
  • Image Processing Technology: Adaptive AGC, DDE, 3D DNR
  • 1024 x 768 resolution 0.39-inch OLED display
  • Supports distance measurement and hotspot function
  • Supports video recording and snapshot and built-in EMMC (16GB)
  • Supports digital zoom and cursor function and palettes of color adjustable
  • Observation distance up to 2600m
Category: Tag:
FacebookPinterestRedditDeliciousWhatsappEmail

HIKMICRO Thunder Pro TQ50C Thermal Image Scope contains a crisp 50mm f/1 objective lens focusing on the available thermal radiation. The field of view on this thermal clip-on is 8.78 by 7.03 degrees. The eye relief distance is measured at 10mm and the exit pupil diameter measures 22mm.?Behind the lens of the Thunder Pro TQ50C, you can find the (uncooled, 12 micrometres) 640 x 512 pixels core refreshing the image at 50Hz. The thermal contrast (NETD) of this thermal clip-on is <35mK and it’s operating within the 8?m to 14?m infrared spectrum. The physical dimensions of this thermal clip-on read 171 x 74 x 62mm (L x W x H) weighing 495 grams. This device is rated IP67. It handles dust, shocks, water (splashes), and submersion under water. It’s rated for operating in temperatures between -20 and 55°C.

SPECIFICATIONS

Image Sensor: Uncooled Focal Plane Arrays
Pixel Interval: 12m
Maximum Resolution: 640 x 512
Response Waveband: 8?m to 14m
NETD: <35mK(25°C, F # = 1.0)
Lens (Focal Length): 50mm
Detection Range: 2600m
IFOV: 0.24mrad
Field of View: 8.78 x 7.03
Minimum Focusing Distance: 5m
Aperture: F1.0
Frame Rate: 50Hz
Magnification: 1x

Additional information

Weight 1000 kg
