HIKMICRO B11 is designed for temperature measurement to find invisible faults. It’s equipped with a 192 x 144 resolution thermal detector and a 2MP optical detector. The thermography ranges from -20 to 550°C (-4 to 1022°F), which meets the most situation. It helps the staff to quickly find the fault according to accurate temperature measurements of high-temperature targets in the environment. Meanwhile, it provides assistance decisions and ensures safety. The device is mainly applied to various industries, such as Building, HVAC, auto industry, etc
SPECIFICATIONS
INFRARED IMAGE
IR Resolution: 192 x 144 (27,648 pixels)
NETD:?<40mK (@25°C, F# = 1.0)
Image Frequency: 25Hz
Detector Pitch: 12 m
Spectral Range: 7.5 to 14?m
Focal Length: 3.6mm
F-number: F1.0
Field of View (FOV): 27.8 x 37.2
Spatial Resolution (IFOV): 3.3 mrad
Minimum Focus Distance: 0.3m (0.98ft)
Focus Mode: Focus Free
IMAGE DISPLAY
Visual Camera: 1600 x 1200 (2MP)
Display: 240 x 320 Resolution, 3.2-inch LCD Screen
Color Palettes: White Hot, Black Hot, Rainbow, Ironbow
Color Alarm: Above alarm

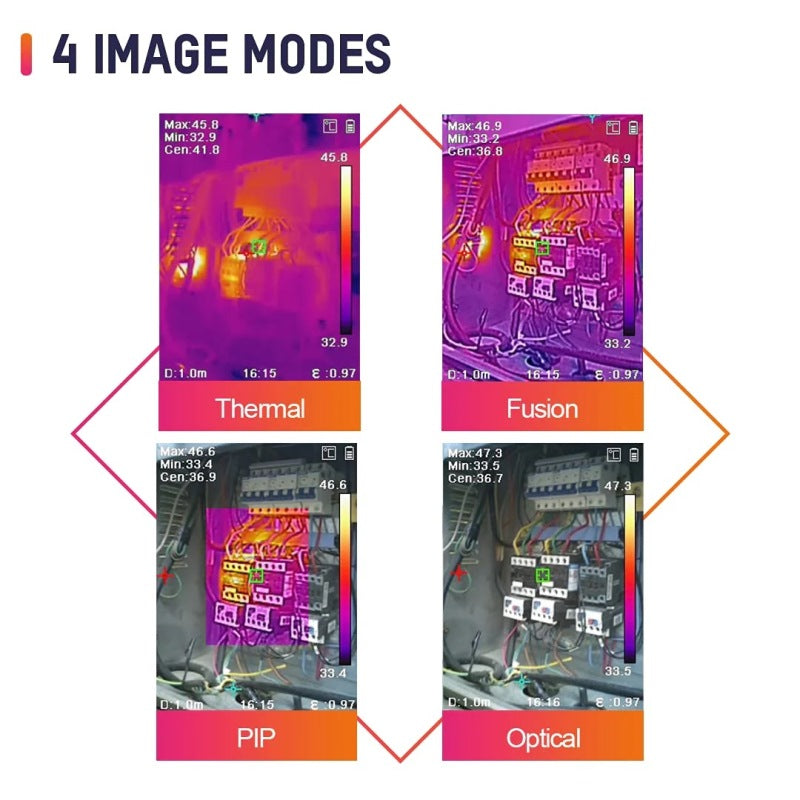

Image Modes: Thermal/Visual/Fusion/PIP
MEASUREMENT AND ANALYSIS
Object Temperature Range: -20 to 550°C (-4 to 1022°F)
Accuracy: Maximum ( 2°C/3.6°F, 2%), for ambient temperature 15 to 35°C (59 to 95°F) and object temperature above 0°C (32°F)
Measurement Tools: Center Spot, Hot Spot, Cold Spot, User-definable: 3 spots
Level and Span Mode: Auto/Manual
DATA STORAGE AND COMMUNICATION
Storage Media: Built-in 16GB flash memory
Image Storage Capacity: Approximately 90,000 Images
GENERAL
Wi-Fi: 802.11 b/g/n (2.4GHz)
USB Interface: USB Type-C
LED Light: Yes
Battery Type: Rechargeable Li-ion battery
Battery Operating Time: Approximately 6 hours
Battery Charging Time: Approximately 3 hours fully charged
Protection Level: IP54
Drop Test Height: 2m (6.56ft)
Working Temperature Range: -10 to 50°C (14 to 122°F)
Storage Temperature Range: -20 to 60°C (-4 to 140°F)
Relative Humidity: <95% non-condensing
Weight: Approximately 380g (0.84lb)
Dimension: 221.7 x 73.5 x 123.8mm (8.73 x 2.89 x 4.87″)
Tripod Mounting: UNC -20
PACKING INCLUDES
1 x QSG
1 x USB 2.0 to USB Type-C Cable
1 x Power Supply for Battery Charger
1 x International Use Plugs (US/EU/UK/AU) for Power Supply
1 x Wrist Strap
Calibration Certificate
