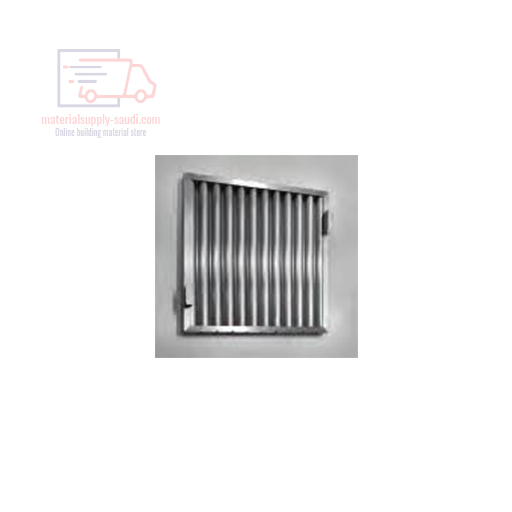

Fecon Grease Extraction Filter

Fecon Grease Extraction Filter for ventilation and air movement in commercial kitchens, buildings, factories, warehouses and farms across Saudi Arabia.

Technical Details

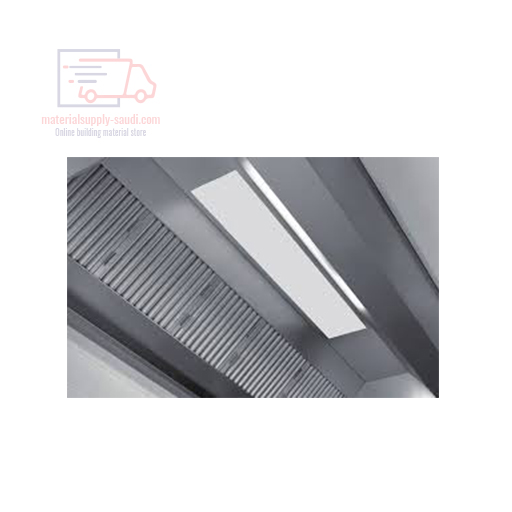

The FECON filter is designed to extract grease from cooking vapors in commercial kitchen ven- tilation systems. The semi-circular channel construction of the filter guarantees the highest attainable grade of grease extraction by creating a centrifugal force in the filter. The efficiency of the Fecon filter is 95 %. The grease collects in the lowest part of the filter preventing clogging and maintaining an even extraction over the entire length of the ventilation system. The filters are placed at an angle of approx- imately 45° in the canopy and are easily Removable without tooling. The FECON filter is flame resistant and in case of flash fires the FECON filters prevent the flames from penetrating into the ductwork.

n

CONSTRUCTION

The filters are constructed from stainless steel type 304 (DIN 1.4031 grit 320) 1.20 mm thick. The 36 mm thick filter is constructed without rivets and is provided with two integrated handles formed from the surrounding frame. On the top and bottom the filter 10% is open for the out stream of grease and moisture. The Fecon filters are resistant to aggressive detergents.

ADVANTAGES:

• High grease extraction rate
• Solid construction
• Entirely constructed of stainless steel
• Simple to remove without tooling
• Flame retardant according to DIN 4102 fire safety standard
• Easy maintenance in any commercial dish wash machine
• Welded construction with no visible mechanical fixings
• Easily accessible and removable grease collection trays
• Full perimeter condensation channel

• • Water Wash (WW) and also Water Misty
  • Vianen UV-C Filtration System
  • Make-up / Supply Air – MUAP
  • Maestro – Vianen Kitchen Management System
  • Vetec – Demand Control Ventilation SystemOPTIONS

     The Basic Line canopies are available with several options to further increase their efficiency and improve the working environment within the kitchen space.Victoria – Intelligent Monitoring System
  • Water Wash (WW) and also Water Misty
  • Vianen UV-C Filtration System
  • Make-up / Supply Air – MUAP
  • Maestro – Vianen Kitchen Management System
  • Vetec – Demand Control Ventilation System
  • Victoria – Intelligent Monitoring System

Price: the listed price is the starting price for the smallest / basic model in this range. Larger sizes and options are priced on request.
