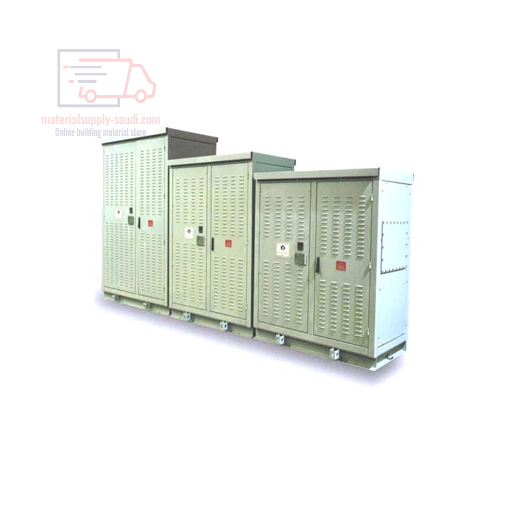

Dry Type Resin-Encapsulated Transformers (EPT)

Dry Type Resin-Encapsulated Transformers (EPT) – engineered to your project specification and supplied across Saudi Arabia for utilities, industrial plants, commercial buildings and infrastructure projects. Pricing depends on rating, configuration and quantity; contact us with your single-line diagram or specification for a quotation.

Technical Data & Available Versions

Features and Specifications

Suitable for indoor/outdoor mounting (600 volt class).

Can be mounted in any position indoors. Outdoors mount upright only.

Constructed in accordance with NEMA / ANSI and IEEE standards.

Totally enclosed – non – ventilated design permits installation in areas that contain dust, moisture or corrosive fumes.

As much as 40% smaller in cubic volume than equal kVA rating in other dry type designs.

Low sound levels permit installation in hospitals, hotels, schools, and libraries. Large terminal compartment permits easier connections.

Immersion of core and coil in sand and resin provides rigid construction which means attenuates sound and will withstand short circuit stresses up to 25 times normal load current for two seconds.

15 kVA and below have terminal compartment on the bottom. 30-45 kVA have terminal compartment at top no knockouts. Lifting holes are provided.

Flexible leads built into the unit for ease of making connections. 115oC rise - 185oC total insulation system.

With the above operating temperatures, EPT types can be used in hazardous areas in which contain substances with ignition temperatures more than 185oC.

Request a quote: send us your specification for pricing and delivery.
