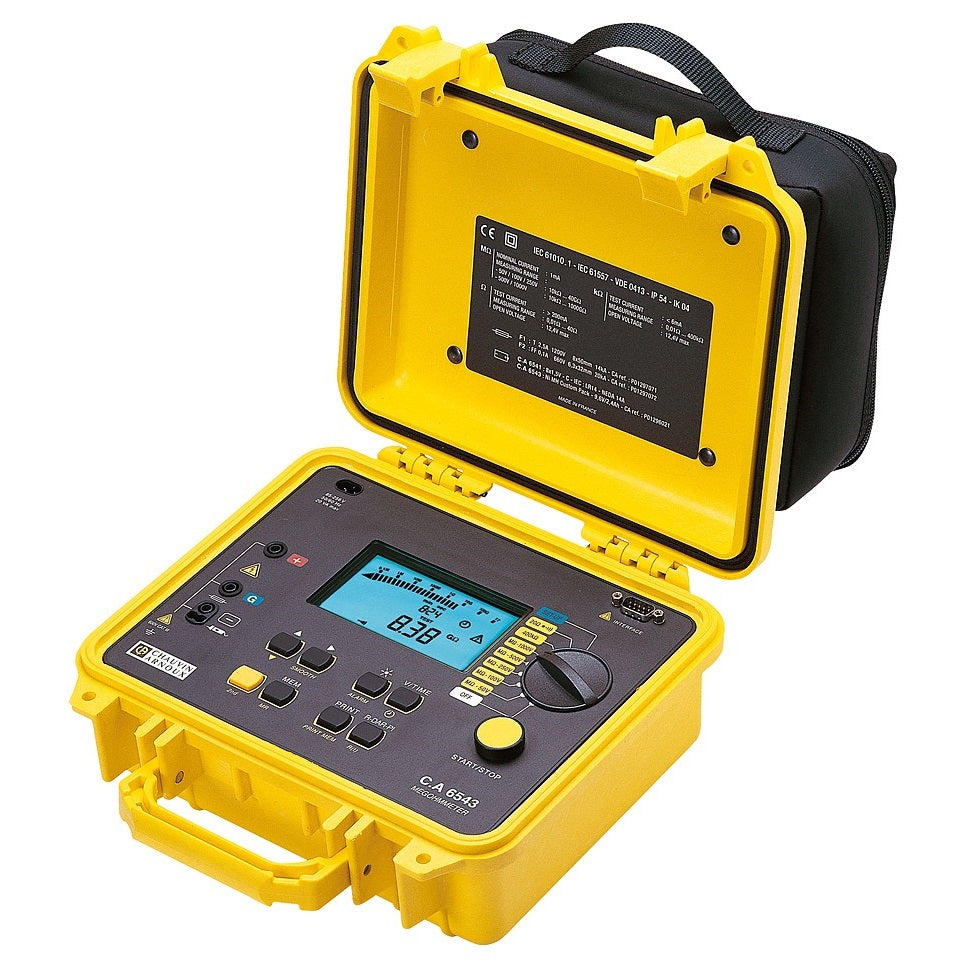

Chauvin Arnoux CA6543 1kV High Performance Insulation Tester

Material Supply SKU #: Z-CHAUVIN-ARNOUX-CA6543-1KV-HIGH-1095

SAR 7,211.00

/ Each

In Stock — Ships Today

Delivery by tomorrow when ordered by 4PM

Free Shipping over SAR 500

365-Day Returns

Secure Checkout

FEATURES

Programmable alarms
Microprocessor-controlled
Storage of measurements (128kB)
Large LCD screen with digital display and bargraph
Dimensions: 240 x 185 x 110mm and weight: 3.4kg
Long battery life thanks to rechargeable battery with internal charger
Automatic capacitance measurement after each insulation measurement

The Chauvin Arnoux CA6543 is a 50V to 1kV high-performance insulation tester. It supports extreme site conditions and is an expert tool for qualitative insulation analysis.

n n

TECHNICAL SPECIFICATIONS

Resistance: 0.01O to 400kO
Continuity: 0.01O to 40O
Electrical safety: IEC 61010 600V CAT III and IEC 61557
Programmable test duration and plotting of the R(t) curve
Automatic calculation of insulation quality ratios: DAR and PI
Insulation up to 4TO (5 ranges) at 50/100/250/500 and 1000V DC
Automatic indication of voltage before and after measurement: 1 to 1000V AC/DC

Weight	4000 lbs
No specifications available.
