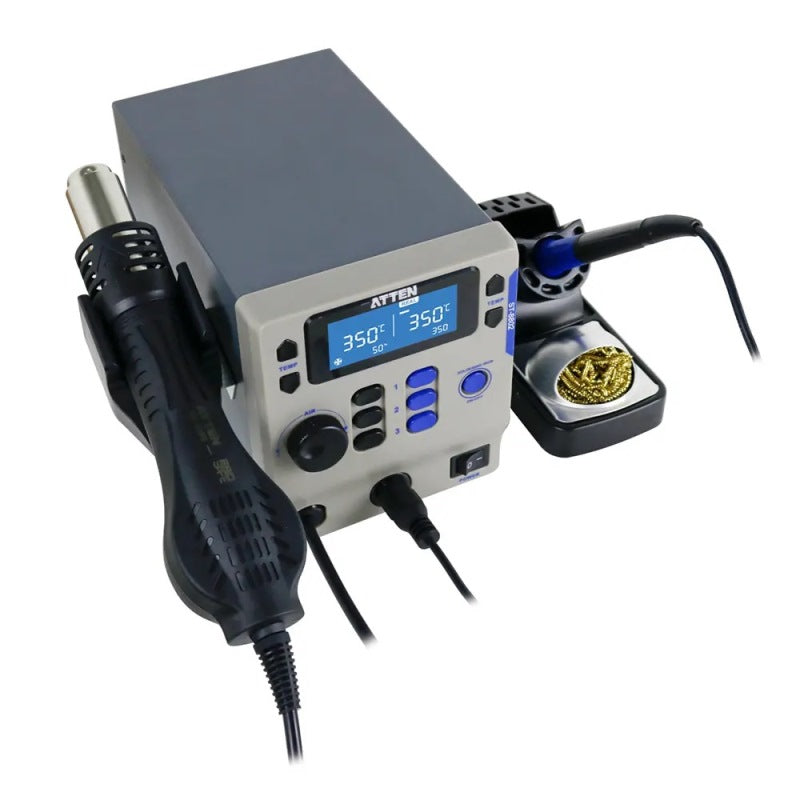

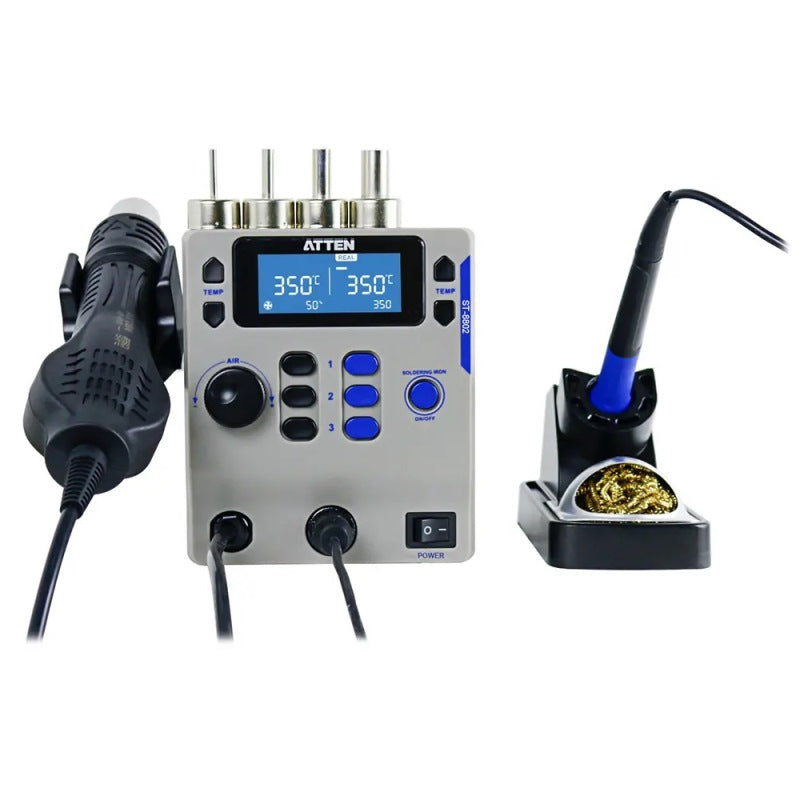

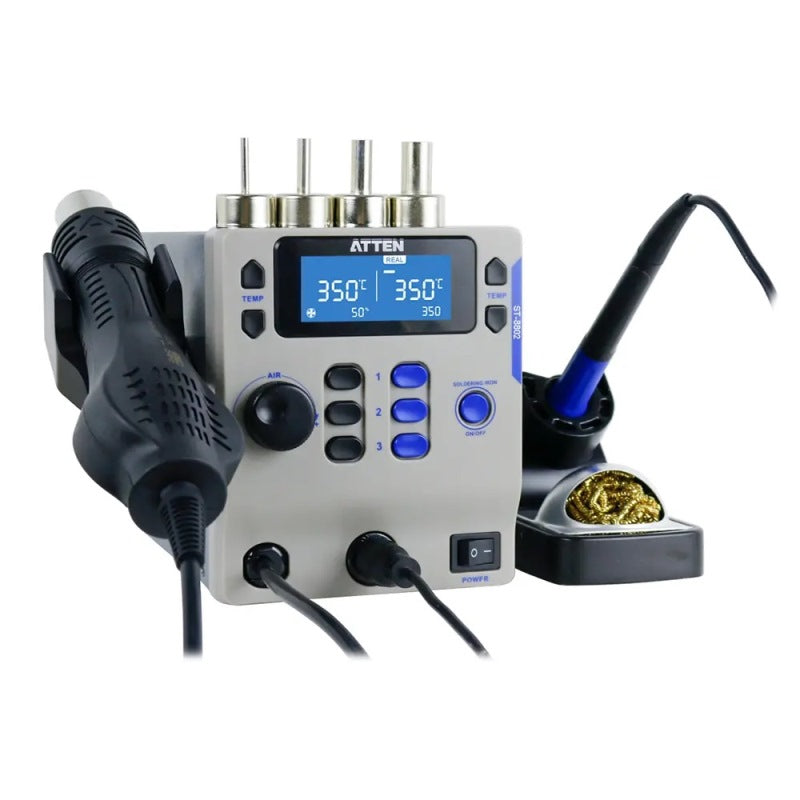

The Atten ST-8802 is a good extension for any workspace. The station can be used for both soldering and repair applications. The station features three temperature preset keys and has a password protection/key lock function. The brushless vortex fan ensures a more gentle and evenly spaced air output. Furthermore, the soldering iron and hot-air gun can be used at the same time. The station has a large LCD screen and big buttons with which the soldering- and hot-air settings can be separately adjusted. All information about both the soldering and hot-air parts is shown on the screen at the same time. With a touch sensor, the auto sleep function will take effect immediately when the hot-air gun is placed back into the stand. Furthermore, the station has a cooling function that cools down the gun extending the work life of the heating core and handle. This cold air function can also be used on its own.

SPECIFICATIONS

Power (Soldering Iron): 65W
Power (Hot Air Gun): 800W
Shortcut Temperature: 3 Sets
Fuse Type: T5A (230V AC) T10A (110V AC)
Input Voltage: 110V AC/220V AC 10%, 50Hz/60Hz
Temperature Range (Soldering Iron): 80 to 480°C/176 to 896°F
Temperature Range (Hot Air Gun): 100 to 500°C/212 to 939°F
Temperature Adjustment (Soldering Iron): Long press to adjust 10 units at a time
Temperature Adjustment (Hot Air Gun): Short press to adjust 1 unit at a time
Working Conditions: Temperature 0 to 40°C, Relative Humidity <80%
Storage Conditions: Temperature -20 to 80°C, Relative Humidity <80%
Dimensions: 29.5 x 24.8 x 18.8cm
Net Weight: 2.75kg

PACKING INCLUDES

1 x Hot Air Station
1 x Hot Air Gun
1 x Hot Air Gun Holder
1 x Soldering Iron
1 x Soldering Iron Stand
1 x Power Cord
4 x Nozzles
User Manual
