Type: C
Display unit (mm/inch): mm + inch

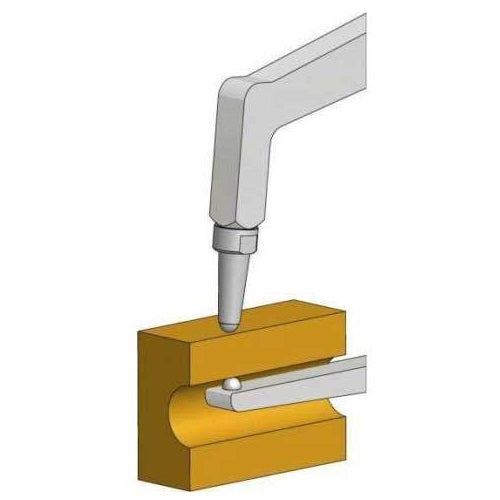

Application: Measurement of tube wall thickness

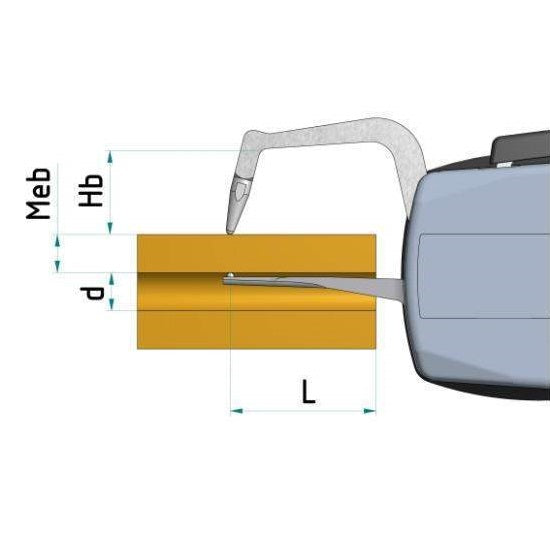

Measuring span Mes: 15 mm
Measuring range Meb: 0-15 mm
Range of indication Azb: 0-15.5 mm
Numerical interval Zw: 0.001 / 0.002 / 0.005 / 0.01 mm
Maximum permissible errors G: 0.01 mm
Repeatability limit r: 0.005 mm
Measuring force F minimum: 1.3 N
Measuring force F maximum: 1.5 N
Type of measuring contact movable: HM-Ball 1.5 mm
Measuring contact movable Hb: 17 mm
Type of measuring contact fixed: HM-Ball 1.5 mm
Measuring contact fixed Hf: 0.9 mm
Measuring depth maximum L: 45 mm
Weight: 165 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67
OPTIONAL ACCESSORIES

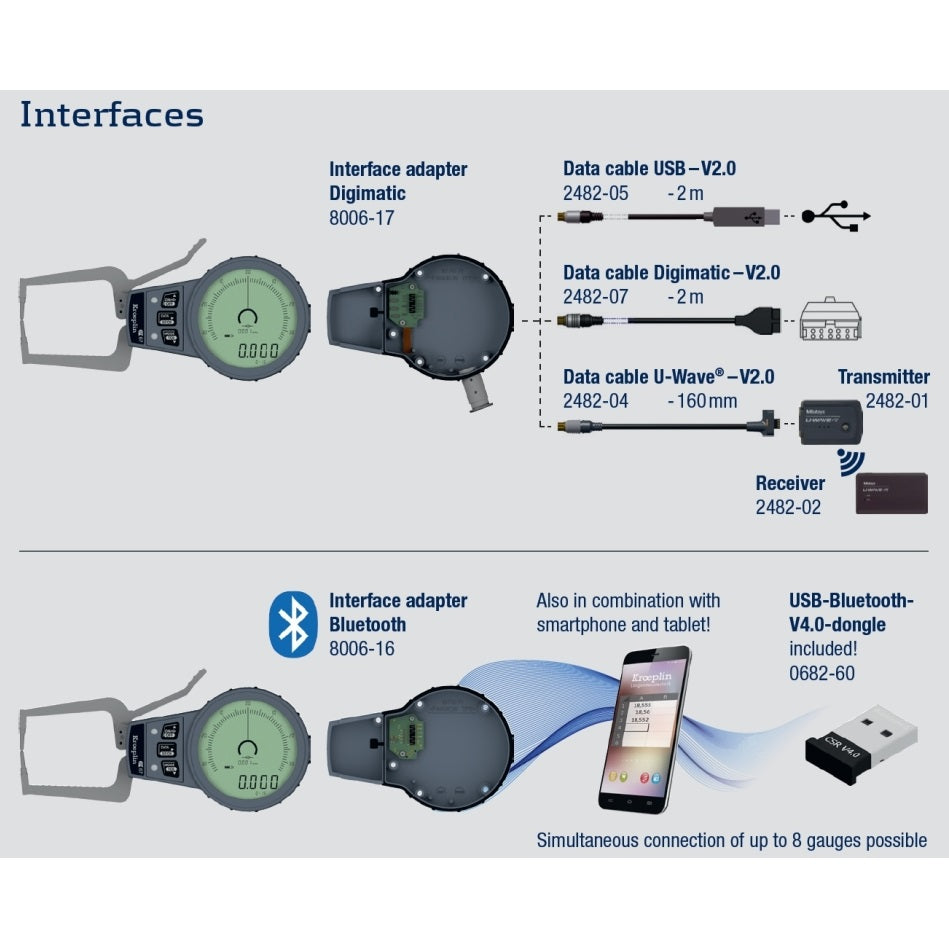

Interface Bluetooth: Order no. 8006-16
Wooden box: Order no. 1732-38
Holding unit: Order no. 8004-58
