Type: C
Display unit (mm / inch): mm + inch
Application: External measurement
Measuring span Mes: 0.59 inch
Measuring range Meb: 0-0.59 inch
Range of indication Azb: 0-0.6102 inch
Numerical interval Zw: 0.0001 / 0.0002 / 0.0005 inch
Maximun permissible errors G: 0.0004 inch
Repeatability limit r: 0.0002 inch
Measuring force F minimum: 1.3 N
Measuring force F maximum: 1.5 N

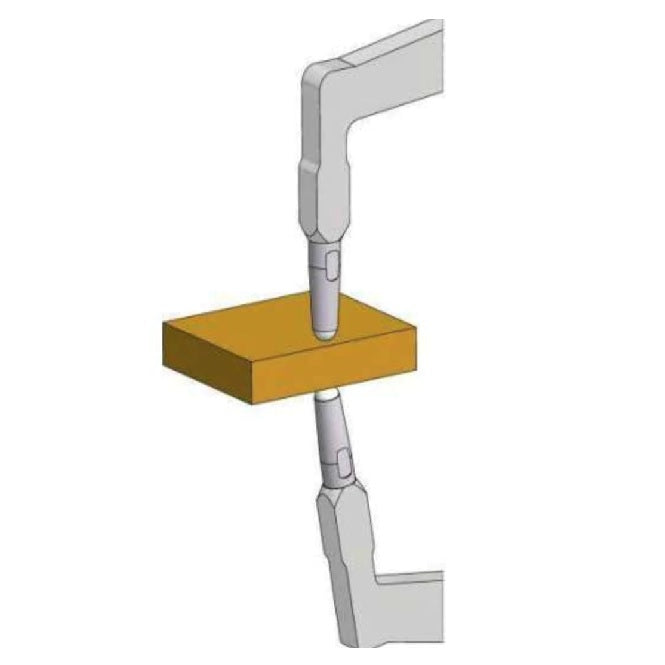

Type of measuring contact movable: HM-Ball 0.06 inch

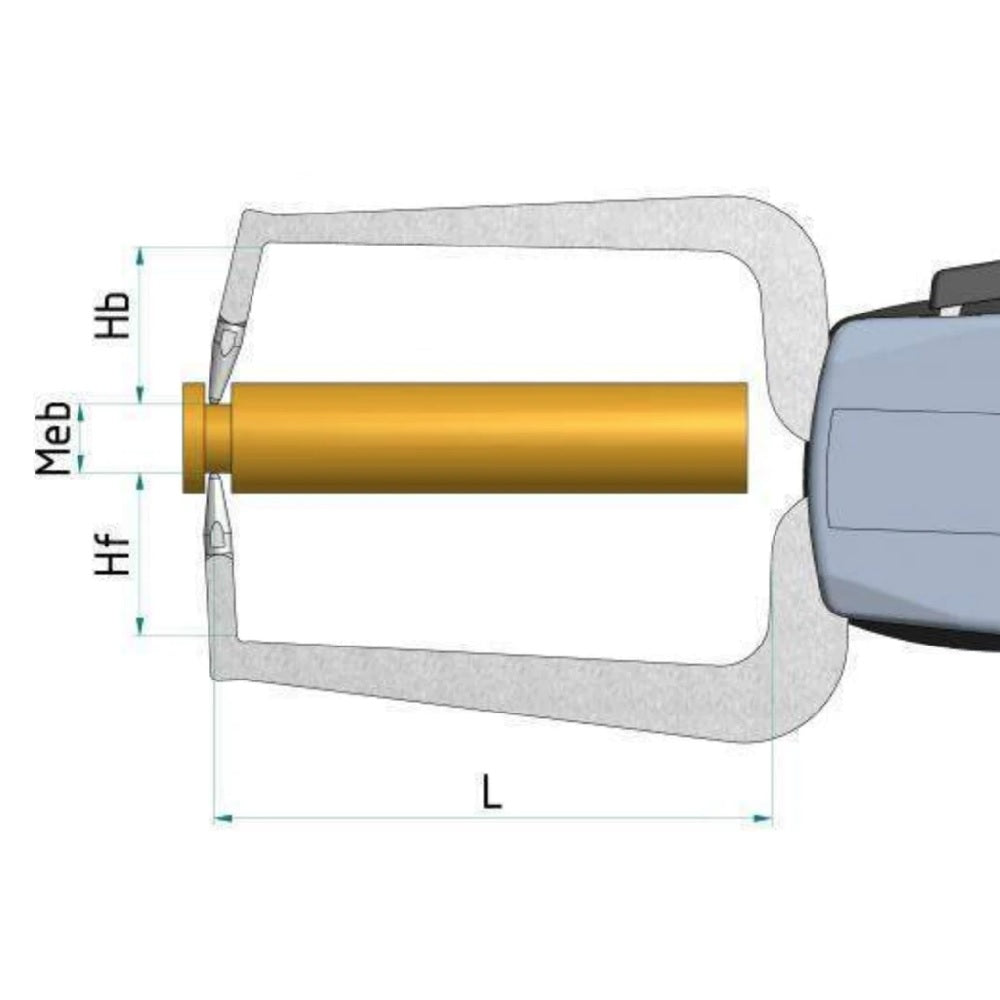

Measuring contact movable Hb: 0.66 inch
Type of measuring contact fixed: HM-Ball 0.06 inch
Measuring contact fixed Hf: 0.66 inch
Measuring contact thickness maximum: 0.098 inch
Measuring depth maximum L: 1.78 inch
Weight: 170 g
Reference temperature: 20 °C
Operating temperature: 10 to 30 °C
Storage temperature: -10 to 50 °C
Protection class: IP67
OPTIONAL ACCESSORIES

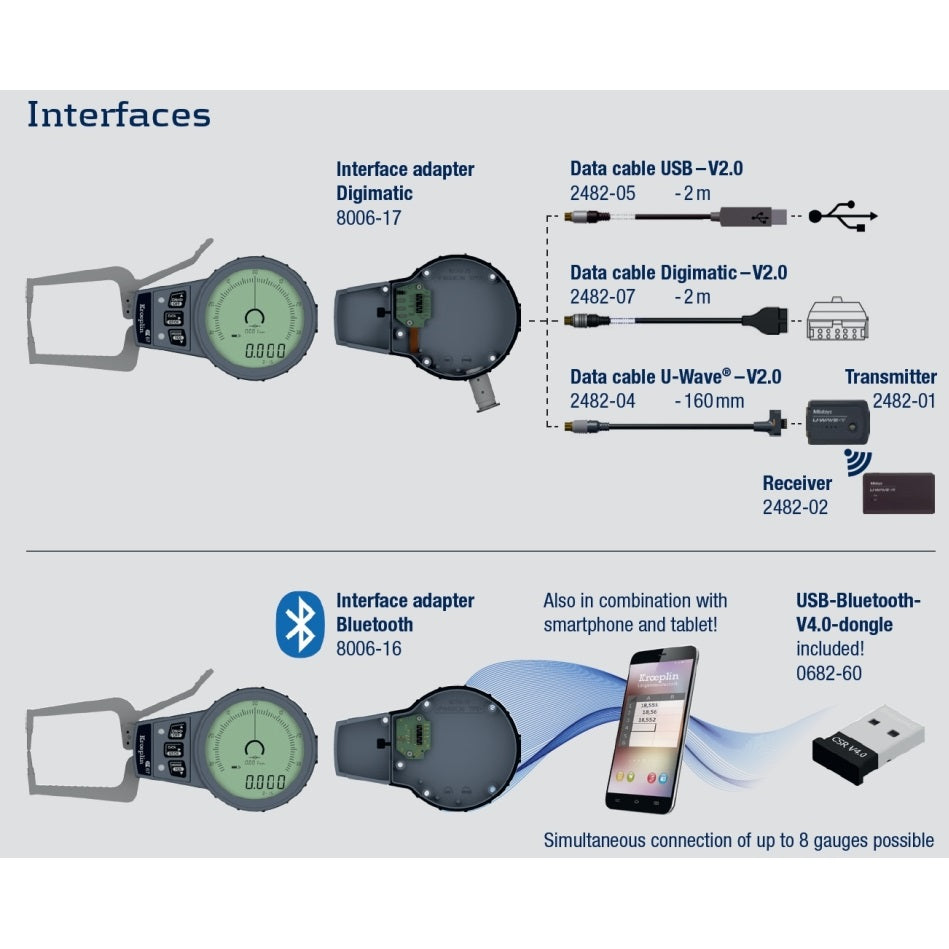

Interface Bluetooth: Order no. 8006-16
Wooden box: Order no. 1732-38
Holding unit: Order no. 8004-58
